Outstanding Business Opprotunity

[Category : - Motors]
[Viewed 2842 times]

Video Link : Link

Harris Technology has invented and developed an Advanced Industrial Motor Shaft Alignment System at an affordable price.
The patented system includes Computing / Device Interphase Module, Control Module, 2 Digital Measuring Devices, with the option to use an Automated Positioning System. This system guides you through the alignment process with user friendly Touch Screen graphic icon repre-sented instructions.

The lights and numeric displays let you know your exact position proximity within .00005" accuracy as you are achieving the alignment process. This gives you full control of the speed of moving the motor to achieve the alignment process. The system achieves horizontal alignment without entering user input distance measurements giving reference to the distance between measuring devices and distances from one of the measuring devices to the front and rear of the motor feet. This is a requirement of other systems and the disadvantage is it is difficult to obtain accurate input measurements. The more accurate or abstemious the input measurement gives the most accurate alignment positioning results. This system utilizes calculated information that is based only on dynamic direct response readings without user input information. This system eliminates the disadvantage other systems have and gives the highest possible level of abstemious minute horizontal dynamic directly responsive calculated positioning accuracy. The system compensates for any static movement detected and signals in advance when to stop movement.
There are no other system that compensates for static movement caused by applied pressure difference against the motor when you are moving the motor to correct the misalignment which affects the alignment readings. This compensation allows the user to achieve the highest degree of total dynamic manual horizontal positioning accuracy. It is accurate with-in .0003" per axis move.
The Control Module also has the option of using an I Phone, I Pad,
Mobile PC or Android PDA as the control platform. The systems start at $7499.00 without the Automated Jacking Systems. The Automated Hori-zontal Jacking System starts at $4000.00 and includes Front and Rear Slide Plates, Front and Rear Linear Bearing Adjustable Mounting Brackets, Front and Rear Electric Horizontal Jacks with the capacity to align electric motors within the 4000 lb. range. The Vertical Front and Rear Air Bag Lifting Systems starts at $1500 with the capacity to lift electric mo-tors within the 6000 lb. range. Would you rather have a system that tells you the amount of movement required or a system that automatically does the alignment for you?

Video Link : Link

Harris Technology has invented and developed an Advanced Industrial Motor Shaft Alignment System at an affordable price.
The patented system includes Computing / Device Interphase Module, Control Module, 2 Digital Measuring Devices, with the option to use an Automated Positioning System. This system guides you through the alignment process with user friendly Touch Screen graphic icon represented instructions.

The lights and numeric displays let you know your exact position proximity within .00005" accuracy as you are achieving the alignment process. This gives you full control of the speed of moving the motor to achieve the alignment process. The system achieves horizontal alignment without entering user input distance measurements giving reference to the distance between measuring devices and distances from one of the measuring devices to the front and rear of the motor feet. This is a requirement of other systems and the disadvantage is it is difficult to obtain accurate input measurements. The more accurate or abstemious the input measurement gives the most accurate alignment positioning results. This system utilizes calculated information that is based only on dynamic direct response readings without user input information. This system eliminates the disadvantage other systems have and gives the highest possible level of abstemious minute horizontal dynamic directly responsive calculated positioning accuracy. The system compensates for any static movement detected and signals in advance when to stop movement.
There are no other system that compensates for static movement caused by applied pressure difference against the motor when you are moving the motor to correct the misalignment which affects the alignment readings. This compensation allows the user to achieve the highest degree of total dynamic manual horizontal positioning accuracy. It is accurate with-in .0003" per axis move.
The Control Module also has the option of using an I Phone, I Pad,
Mobile PC or Android PDA as the control platform. The systems start at $7499.00 without the Automated Jacking Systems. The Automated Horizontal Jacking System starts at $4000.00 and includes Front and Rear Slide Plates, Front and Rear Linear Bearing Adjustable Mounting Brackets, Front and Rear Electric Horizontal Jacks with the capacity to align electric motors within the 4000 lb. range. The Vertical Front and Rear Air Bag Lifting Systems starts at $1500 with the capacity to lift electric mo-tors within the 6000 lb. range. Would you rather have a system that tells you the amount of movement required or a system that automatically does the alignment for you?

SPECIAL INTRODUCTORY PRICE $ 7499.00
LIMITED TIME OFFER!

* Includes Control & Computing Module with Robotic manual & automated positioning systems software with a 5 year warranty.
* Includes 2 Fowler/Sylvac Mark 6 Digital Indicators with a life time warranty.
* Includes 6 inch graphic icon represented Color Touchscreen with a 2 year warranty.
* Includes Ethernet Router that enables Iphone or Android PDA remote control.
* Includes Positioning Inclinometer.
* Includes Soft Foot Correction Program.
* Includes Vertical and Horizontal Alignment Programs.
* The only system with Horizontal Program software that requires no manual dimension input measurements therefore eliminating error which provides for a higher degree of alignment positioning accuracy.
* The only system with software that compensates the static and dynamic movement difference which eliminates error and provides for a higher degree of dynamic alignment positioning accuracy.
* Includes all necessary Mounting Hardware.
* Includes 2 Mark VI Digital Indicators with 2 way RS 232 communications which enables a program that guides you through the horizontal alignment process of aligning a shaft or rotor to a housing or container by monitoring the front and rear movement directional lights and monitoring the front and rear shaft movement change values displayed on the display unit or using the automated horizontal jacking supported process. Aligning the manual vertical shaft to the housing and/or the container by monitoring the front and rear movement directional lights and placing or removing the front and rear amount of shims that are displayed under the front and rear of the motor feet or using the automated vertical supported process.
**********************************************************
The portable removable Automated Horizontal Jacking System starts at $4000.00 and includes Front and Rear Shim Slide Plates, Front and Rear Linear Bearing Adjustable Mounting Brackets, Front and Rear Electric Horizontal Jacks with the capacity to align electric motors within the
4000 lb. range. The Vertical Front and Rear Air Bag Lifting System starts at $1500 with the capacity to lift electric motors within the 6000 lb. range. Would you rather have a system that tells you the amount of movement required or a system that automatically does the alignment for you?

Limited Time Offer!

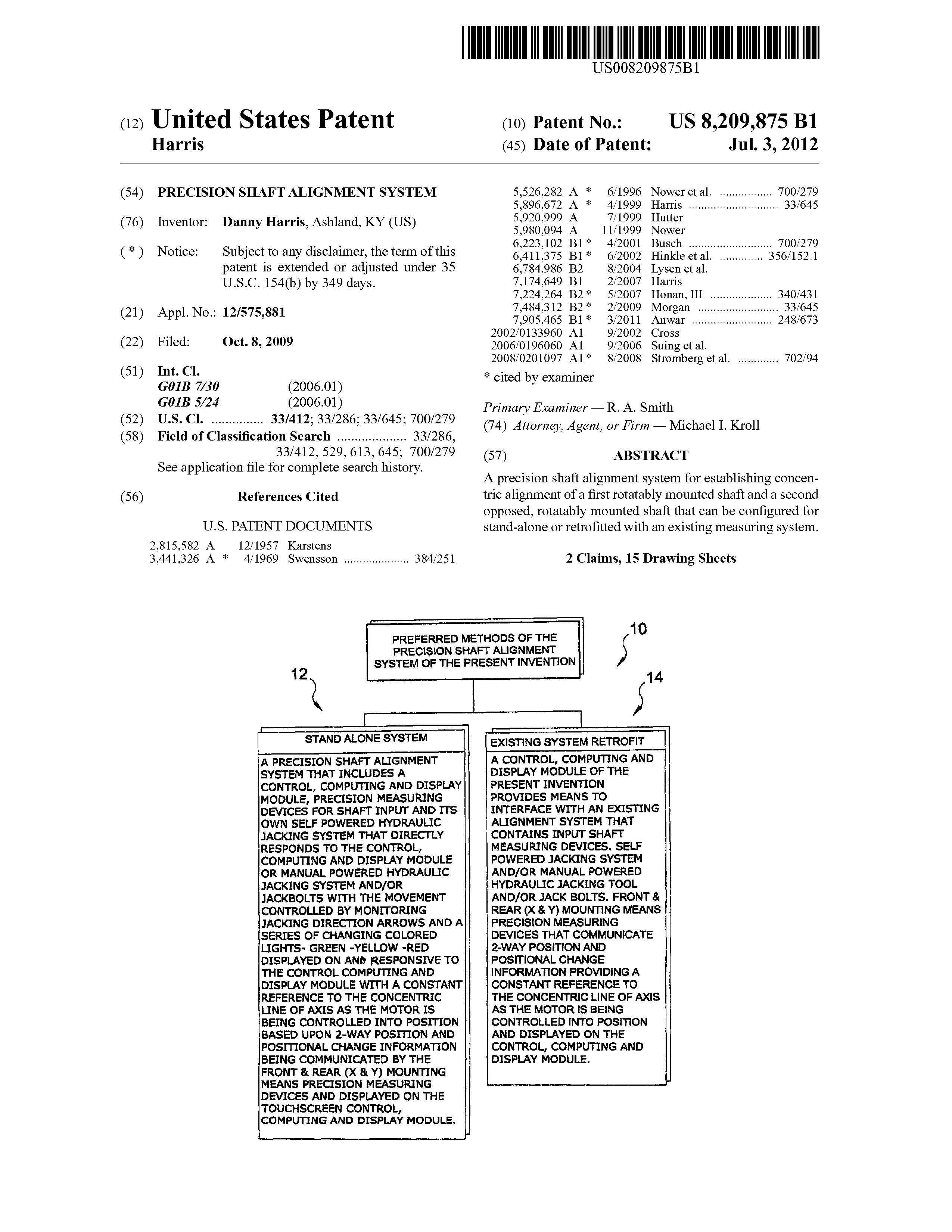

Patent publications:

US 8209875

Asking price:

600,000 USD
