Flush wallplate electrical box assembly

[Category : - Construction Processes & Equipment- ELECTRICITY & LIGHTING- Telecommunications]
[Viewed 53 times]

The Flush Wallplate Electrical Box Assembly deploys and constrains an electrical wallplate such that the wallplate finished face is essentially co-planar to the surrounding wall assembly finish material finished surface. The assembly is comprised of flush wallplate electrical box possessing an integral housing intended to receive the electrical wallplate, an interface flange serving to interface between the electrical box and wall assembly finish materials, an interface placement guide to control the positioning of the interface flange and an element to protect wiring inside the electrical box during wall assembly construction. The form of the electrical box provides for a building and electrical code compliant installation and simplifies box positioning providing minimum variability. The interface flange provides for a consistent termination of wall assembly materials at the periphery of the electrical box.

Financial information

Greatly simplifies the process of constructing a modernist outlet installation.

Allows for use of standard major manufacturer electrical outlets and wall plates.

Additionally, provides for air sealing at electrical box installation.

Please see website Link for demonstration.

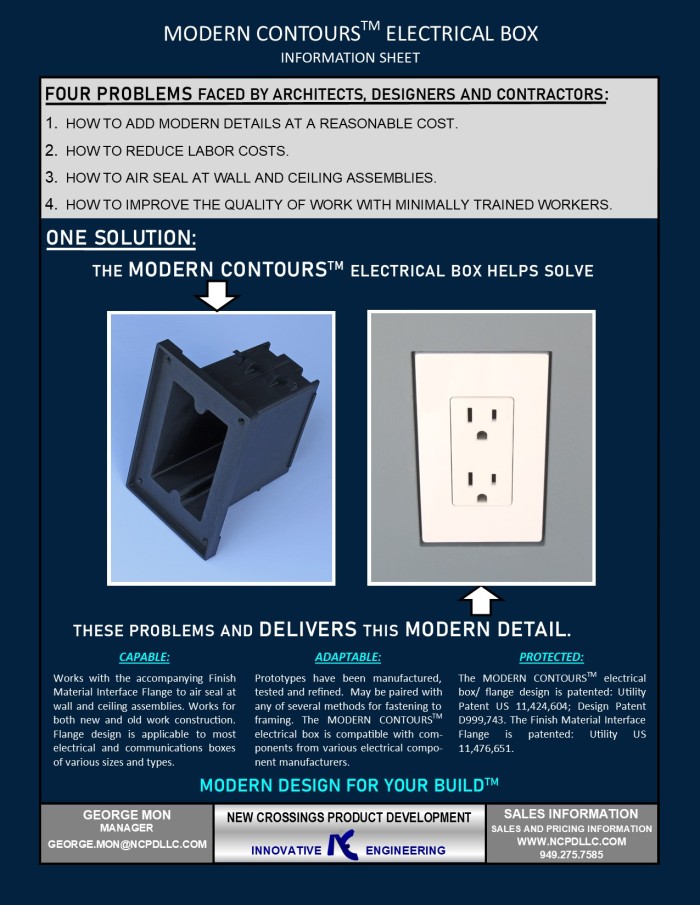

Listed on website as "Modern Contours Electrical Box". The name Modern Contours is a registered trademark owned by the seller of this patent.

Patent publications:

US 11424604

Asking price:

Make an offer
