METHOD FOR PRODUCING A TEXTILE SENSOR

[Category : - ELECTRONICS]
[Viewed 56 times]

A method for manufacturing a textile temperature sensor, including arranging a linear knitting machine having a first thread-guide and a second thread-guide; arranging a conductive insulated wire on the first thread-guide; meshing the conductive insulated wire for making a mesh portion B having a nonconductive surface; arranging an electric resistance measuring device configured to measure a variation of electric resistance, the electric resistance being a function of the temperature; the measuring device phase of the electric resistance including a first electric cable and a second electric cable; electric connection of the first electric cable to the first end and of the second electric cable to the second end; and arranging a control unit arranged to receive from the device the variation of electric resistance in order to calculate excursions of the temperature at the lead wire.

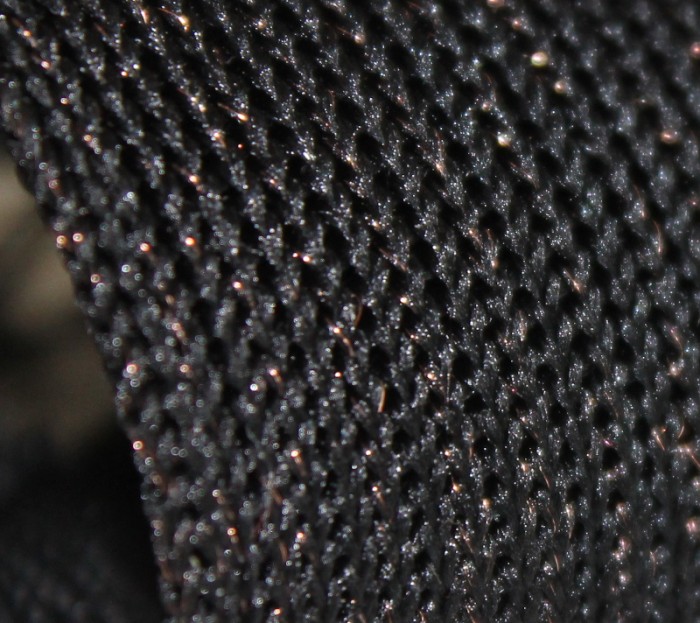

This patents allows the production of a textile RTD, a thermometer made entirely of fabric. This product is super flexible, resists mechanical fatigue, the sensor is extremely linear and sensitive, stretchable, and transparent to air.
Suitable for all wearable applications.

---

---

---

---
