YTEC. OIL AND AQUEOUS PHASE SEPARATOR. (TRL9)

[Category : - OTHER]
[Viewed 71 times]

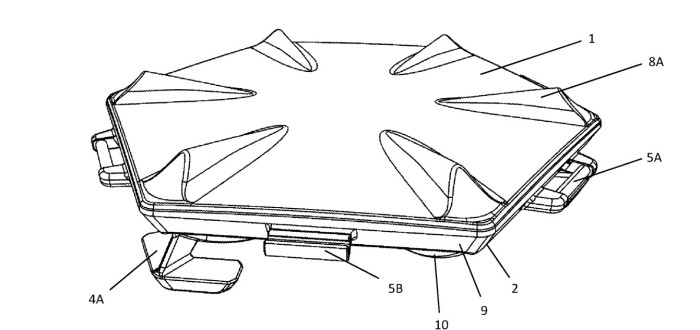

Oil and aqueous phase separator device comprising: a basket that comprises a frame having a plurality of supporting arms and fitting means for linking to other phase separator devices; a top lid of the basket; a hydrophobic mesh linked to the basket and supported by the plurality of supporting arms; a plurality of floats linked to the frame of the basket; a housing for an additional float formed on the upper edge of the frame of the basket; and discharging means linked to the basket.

Financial information

There are several other jurisdictions in which the patent is listed and Granted since August 2021. (ARGENTINA, USA, EP, BR)

Y-RUPE has a granted trademark in Argentina

The technology is available for sale and for non exclusive licensing. We are open to negociate.

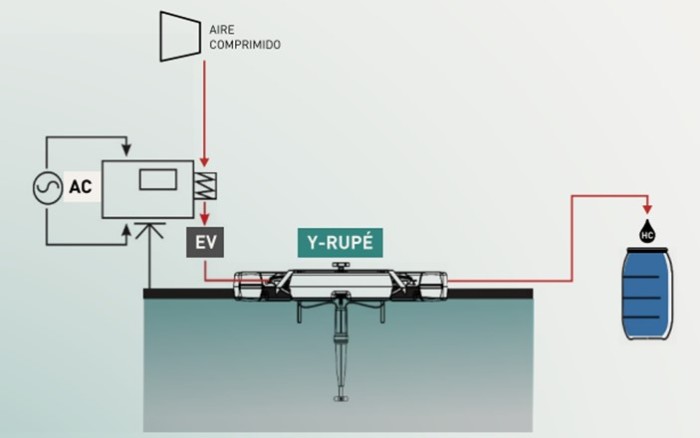

USE CASES: This separator is effective for oil-water separation in quiet or turbulent waters, it can be active with an extracting pump or passive, to revover the separated phase.

There several successful use cases. Contact us for further information: [Use the button below to contact me]

Key Advantages:

1. Efficient Separation:
• Hydrophobic Mesh: Repels water, allowing oil to pass through for precise separation.
• Floats: Maintains optimal positioning in the liquid.

2. Versatile and Modular:
• Basket Design: Easily links to other separator devices.
• Top Lid: Ensures secure containment.

3. User-Friendly:
• Easy Installation: Simple to install and integrate.
• Discharging Means: Smooth removal of separated phases.
• Simplicity in Use: Designed for ease of operation.

4. Durable and Reliable:
• Robust Construction: Built to last.
• Additional Float Housing: Provides added stability.

5. High Selectivity and Filtration Rate:
• 100% Water-Free: Ensures complete separation of water.
• Continuous Operation: Allows uninterrupted processing.

6. Cost-Effective:
• In-Situ Separation: Reduces costs by separating on-site.
• Reduced Treatment Volumes: Minimizes volumes of affected phases for treatment.
• Risk Minimization: Lowers risks associated with treatment and final disposal.

7. Flexible Design:
• Customizable: Adaptable to different volumes of hydrocarbons and recovery rates.

Why Choose Our Separator Device?
• Enhanced Efficiency: Faster and more accurate separation.
• Cost-Effective: Reduce operational costs.
• Environmentally Friendly: Promote sustainable practices.

Invest in our oil and aqueous phase separator device today and experience the difference in your operations!
It's time to take your efficiency to the next level!

Patent publications:

US 11103809

AR 114626
