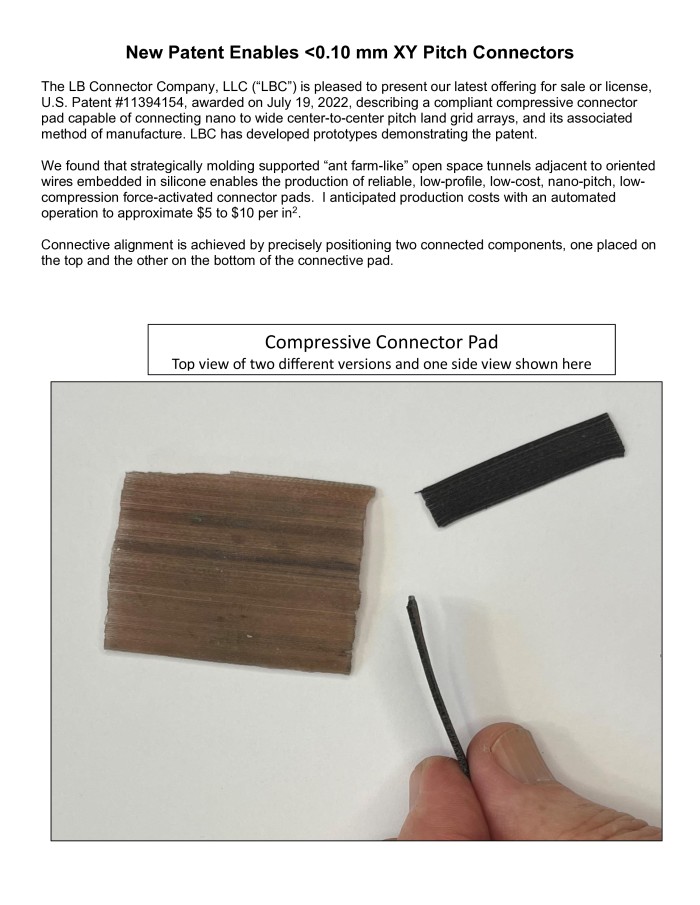

Anisotropic Connector: Low-Cost Manufacturing, 0.002" Pitch

[Category : - ELECTRONICS]
[Viewed 20 times]

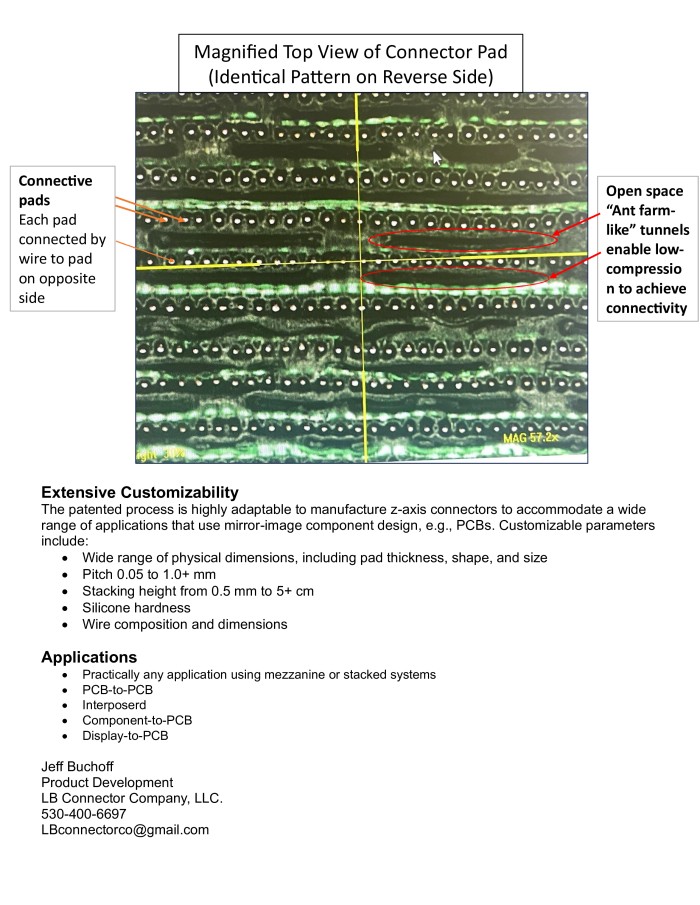

A connection device for interconnecting electrical components that uses a plurality of contact layers. Each of the contact layers includes a substrate of dielectric material with a top edge, a bottom edge and side surfaces. A plurality of conductive elements extends in parallel through the dielectric material. The various contact layers are stacked. The side surfaces of the contact layers interconnect through a matrix of connective pillars. The connective pillars provide a network of open spaces between each of the contact layers. When the overall connection device is compressed, the dielectric material compresses and widens. The open areas receive the deformation and prevent the deformations from propagating lateral forces that can act to displace the conducive elements.

---

---

---

---
