"Innovative Coastal Hydroelectric Power Station."

[Category : - RENEWABLE ENERGY- ELECTRICITY & LIGHTING]
[Viewed 86 times]

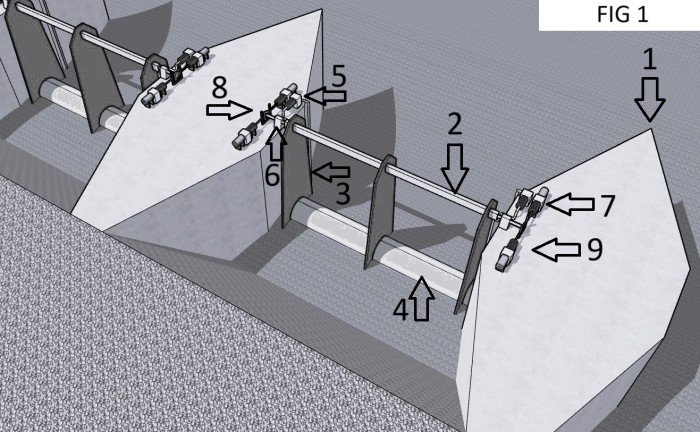

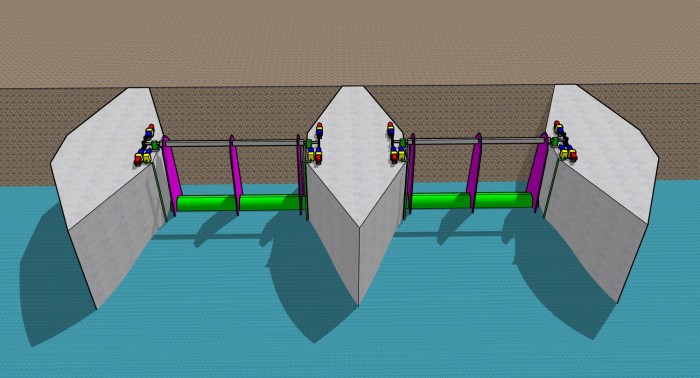

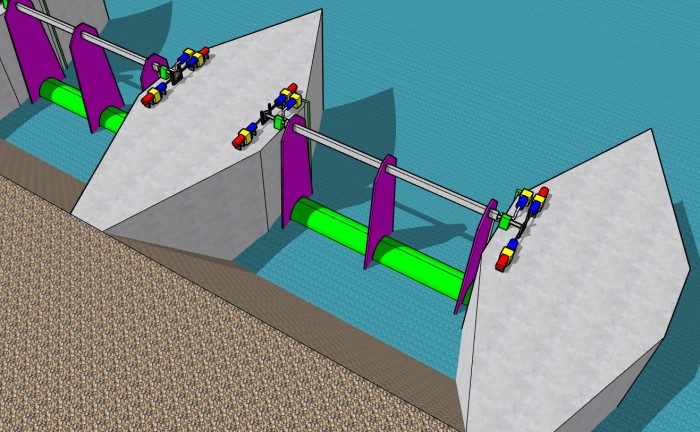

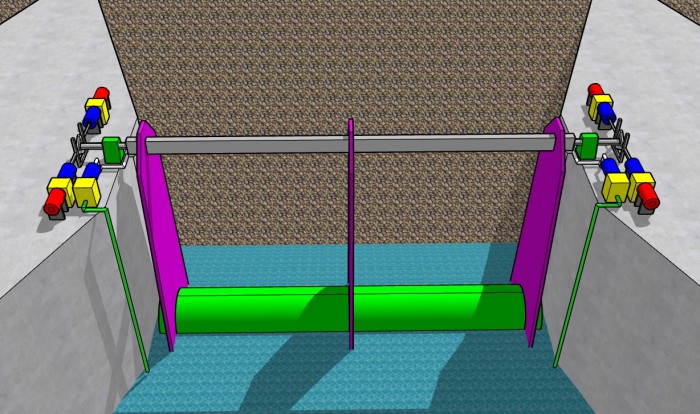

The coastal hydroelectric power station operates from the waves of the ocean or sea. This invention relates to a power station that generates electricity from coastal oceanic or sea waves by utilizing their rise and fall in the surf zone. It contains unique components that allow the power station to adapt to various weather conditions and its location relative to the shore. The technical effect of the device's operation lies in the effective harvesting of wave energy from the surface of oceanic or sea waves using a cylindrical float (4) that can move up and down under the influence of coastal waves. The float interacts with vertical supports (breakwaters) (1), exerting force on the levers (3) to which it is attached, causing them to move vertically in a reciprocating motion. The levers, in turn, are connected to an axis (2) and influence its rotation around its own axis. This axis, in turn, drives cam mechanisms (8) located at both ends. These mechanisms interact with a hydraulic pump (9) and with electric generators (7) situated on the supporting breakwaters (1). As a result, a flow of energy is generated from the coastal oceanic or sea waves, which is converted into electricity at the coastal hydroelectric power station. Currently, there are no operational commercial power plants capable of generating enough electricity for an entire city or region. Marine power plants, for example, are characterized by high construction costs due to their location in open seas, significant maintenance expenses, frequent system failures caused by marine storms, and the inability to quickly relocate pontoons to a safe place in case of bad weather. Very high waves generate a significant amount of energy; however, they can also damage the system and the power plant itself. As a result, existing power plants of this type tend to be smaller than optimal, leading to a reduced volume of energy primarily produced from low waves. Additional disadvantages of such power plants include maintenance difficulties due to the need for boats and cranes to retrieve pontoons from the water. This process is economically unfeasible and takes longer than desired, especially in situations where pontoons need to be urgently raised due to force majeure circumstances. Modern systems also fail to provide consumers with sufficient and stable electricity supply, as they cannot generate electricity in calm seas when there are no waves. Conversely, when marine waves are too high, they shut down due to the risk of damage. Advantages of My Invention The advantage of my invention lies in eliminating the aforementioned drawbacks and creating a reliable, durable, compact, economical, and efficient device with an extended lifespan, interchangeability, and ease of installation. It allows for a more free and effective extraction of wave energy flow from the surface of the waves near the shore at shallow depths, where maximum wave amplitude is achieved. The device's efficiency is minimally affected by the distorted wave shape caused by the crest (storm). The total energy obtained from coastal ocean or sea waves is converted into electricity at the coastal hydroelectric power station.The coastal hydroelectric power station can have a rated capacity of 40 MW and above, occupying a coastal strip of land of 100 meters or more, depending on the station's power, the topography of the coastal area, and the height of the waves. My invention has a national patent GEP20247695B in my country, Georgia, and holds the right of priority for filing an international application. This invention has no analogs in the world and can bring significant economic benefits, allowing thousands of people to build commercial power plants that can maximize the height of waves and the advantages of stormy oceans or seas without causing damage or disruptions to the system. Serious financial investments are required to implement the project. In this regard, I appeal to all interested parties with a proposal for cooperation or the purchase of a license for my invention. I will consider any reasonable business proposals. I am confident that your investments in this project will be profitable and will help take a step towards saving our planet. If you are interested in this offer, please contact me. [Use the button below to contact me] Thank you for your attention, and I wish you a great day!rn rn

Financial information

My invention has a national patent GEP20247695B in my country, Georgia, and holds the right of priority for filing an international application. This invention has no analogs in the world and can bring significant economic benefits, allowing thousands of people to build commercial power plants that can maximize the height of waves and the advantages of stormy oceans or seas without causing damage or disruptions to the system. Serious financial investments are required to implement the project. In this regard, I appeal to all interested parties with a proposal for cooperation or the purchase of a license for my invention. I will consider any reasonable business proposals. I am confident that your investments in this project will be profitable and will help take a step towards saving our planet. If you are interested in this offer, please contact me. [Use the button below to contact me] Thank you for your attention, and I wish you a great day!

Patent publications:

No publication

Asking price:

Make an offer
