Rotating Multi-Layer Pizza Tray System

[Category : - Food]
[Viewed 168 times]

Background:
The present invention relates to a rotating multi-layer tray system designed to store and serve multiple pizzas efficiently. The system allows easy access to different pizzas stored on separate trays, making it ideal for use in parties, restaurants, and buffets.

Summary:
The invention is a multi-layer pizza tray system consisting of multiple circular trays, each capable of independent rotation. The trays are designed to hold pizzas of various sizes and feature triangular cut-outs on the upper trays to allow access to pizzas on the trays below. The system includes a stable base and a central vertical rod that supports and allows rotation of the trays.

Description:
The rotating multi-layer pizza tray system consists of the following components:

Base and Stand:
A circular base providing stability to the entire system.
A central vertical rod extending upwards from the base.
Trays:
Tray 1 (Bottom Tray): A complete circular tray without any cut-outs, designed to hold a pizza.
Tray 2: A circular tray with a triangular cut-out to provide access to the pizzas on the lower trays.
Tray 3: Similar to Tray 2, with a triangular cut-out.
Tray 4 (Top Tray): A circular tray with a triangular cut-out.
Rotatable Bases:
Each tray has a rotatable base beneath it, allowing for independent rotation.
Locking Mechanism:
The trays can be locked together when aligned to provide stability while serving or transporting.
Sizes:
The system is designed to accommodate pizzas of various sizes, including 16 inches, 14 inches, 12 inches, and potentially smaller sizes.
Drawings:
First Image:

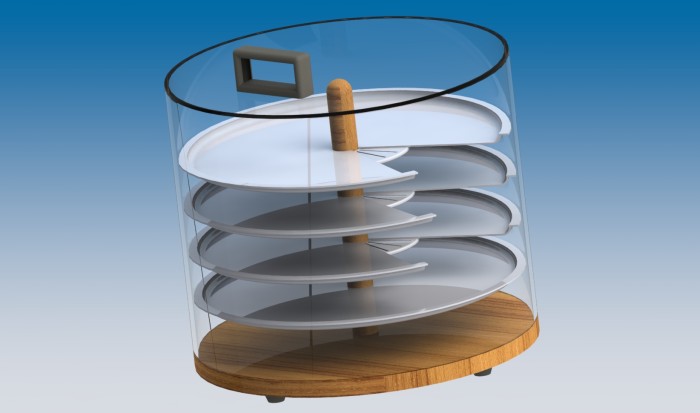

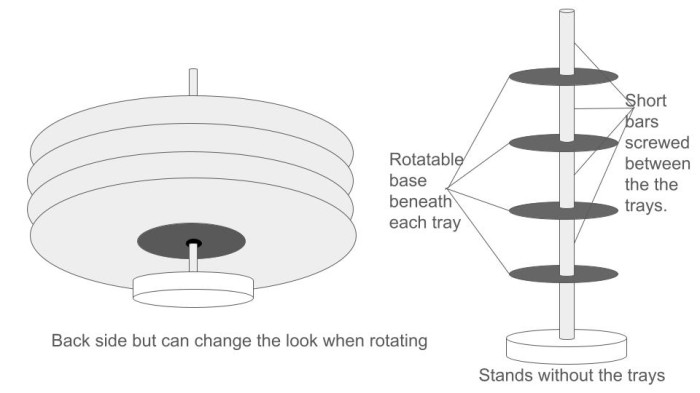

Shows the back side view of the system with all trays stacked and aligned.
Illustrates the circular base and central vertical rod.
Second Image:

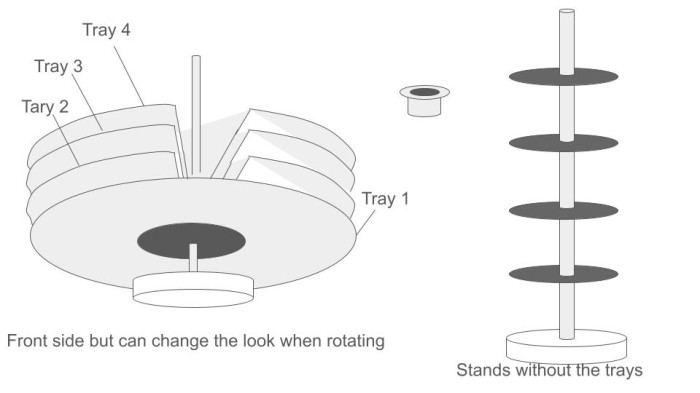

Shows the front side view, emphasizing the triangular cut-outs on the upper trays.
Demonstrates how the cut-outs allow access to the lower trays.
Third Image:

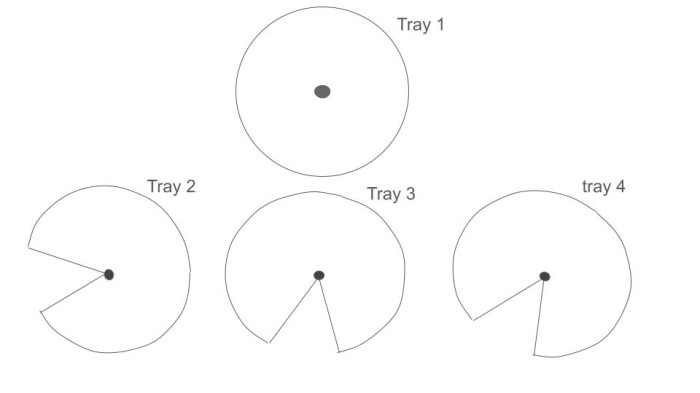

Shows the individual trays separately:
Tray 1 (Bottom Tray): Complete circular tray.
Tray 2, Tray 3, and Tray 4: Circular trays with triangular cut-outs.
Claims:
Rotating Multi-Layer Tray System:
A multi-layer tray system comprising multiple circular trays, each capable of independent rotation.
Triangular Cut-Outs:
The top, second, and third trays each have a triangular cut-out to provide access to pizzas on the trays below.
Complete Bottom Tray:
The bottom tray is a complete circular tray without any cut-outs, designed to support the entire structure.
Stable Base and Central Rod:
A circular base and a central vertical rod to support and allow rotation of the trays.
Locking Mechanism:
A mechanism to lock the trays together when aligned.
Various Sizes:
The system is designed to accommodate pizzas of various sizes, including but not limited to 16 inches, 14 inches, and 12 inches.
Advantages:
Ease of Access: Allows easy access to all pizzas without lifting or moving trays.
Space Efficiency: Stackable design saves space.
Convenience: Rotatable trays provide an efficient solution for serving multiple types of pizzas.
Versatility: Suitable for pizzas of various sizes.
This provisional patent application covers the unique design and functionality of the rotating multi-layer pizza tray system, providing a novel solution for storing and serving multiple pizzas. The drawings included illustrate the system's components and their arrangement, demonstrating the innovative aspects of the design.
