HIGH VELOCITY FLUID NOZZLE

[Category : - MECHANICAL ENGINEERING- OTHER- RENEWABLE ENERGY]
[Viewed 465 times]

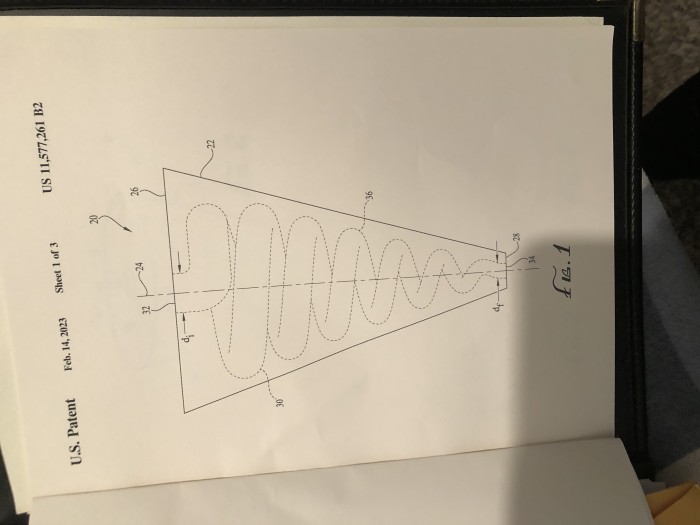

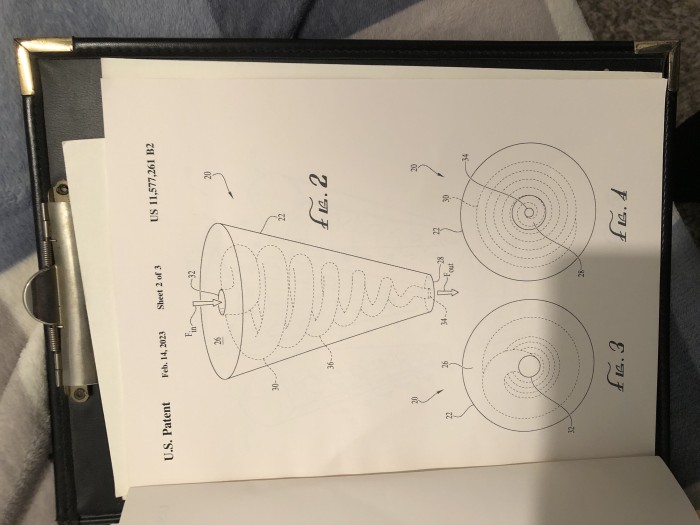

A nozzle is provided for increasing the velocity of a fluid flowing therethrough, such as steam or other working fluid. The nozzle generally includes a body portion with a conical helical passage formed through the body portion to define an unlet port and an outlet orifice. The passage diameter can decreases continuously from the inlet port to the outlet orifice. Further, the conical helical passage can be a right-handed helix. To aid in manufacture and repair, the body can be divided into quadrants, where each plane of division passes through the center axis of the body portion. The present nozzle can be, for example, inserted into a steam turbine nozzle box as s retrofit for increasing the velocity of the steam incident on the turbine blades to increase turbine efficiency.

Financial information

looking for (an outright sale, a license with royalties or another form of partnership);
Improves efficiency of steam turbines for solar power plants, or gas turbine exhaust turbines.
QuantamTurbo™
steamturbinepowerinc.com™
A Green Energy Technology & Products Corporation?

“It defies and changes the steam turbine industry conventional wisdom of bigger is better to smaller, faster and more energy efficient is better for the environment.”

Concept
“Using the QuantamTurbo™ to make green energy, steam turbine power plants more cost efficient to operate then non-green power plants to save the environment.”

Problem
Green energy steam power-plants are not as cost-efficient as natural gas plants to operate due to:
•the required pressure/temp (energy) and size (number of stages) of steam turbines to achieve maximum steam efficiency.
•this in-turn increases the enthalpy drop (energy loss) across the turbine compared to the lower enthalpy drop in smaller gas turbines.
So more natural gas are built then green energy around the world increasing global warming carbon emissions.

Link

Solution

The QuantamTurbo™ increases the force of steam hitting the turbine blades reducing the pressure/temp (energy) of steam needed to achieve maximum efficiency. By lowering the pressure/temp, smaller more powerful, utility steam turbines can be built to increase the electrical output allowing green energy steam power plants to be more cost-efficient to operate instead of carbon emitting natural gas utility turbine power plants.

Trade Secret

This patent technology involves using proprietary mathematical models to calculate the exact deminsions of the converging spiraling flow paths which double the force of steam onto the turbine blades through each stage which reduces the enthalpy drop —energy loss.

The Green Technology

Offers Manufacturers’ a patent technology to produce, smaller, lower costing and more energy efficient, utility steam turbine power generators for the global green energy power markets.

Offers Manufacturers’ a second revenue stream installing the technology in current green energy, power plant, utility steam turbine power generators.

Offers Power Companies’ a technology that can be installed in green energy power plants to increases their output by 1% with a payback of up-to 14.4M/a year in extra electrical generation.

Offers the Angel Investor 10 percent of the expected $1.9 billion Return on Investment. Calculated using a 6% royalty multiplier of the estimated steam turbine sales over the next 5 years.
