DEVICE FOR FILTERING AND COOLING SMOKE IN A HOOKAH

[Category : - OTHER]
[Viewed 282 times]

Formula of useful model:

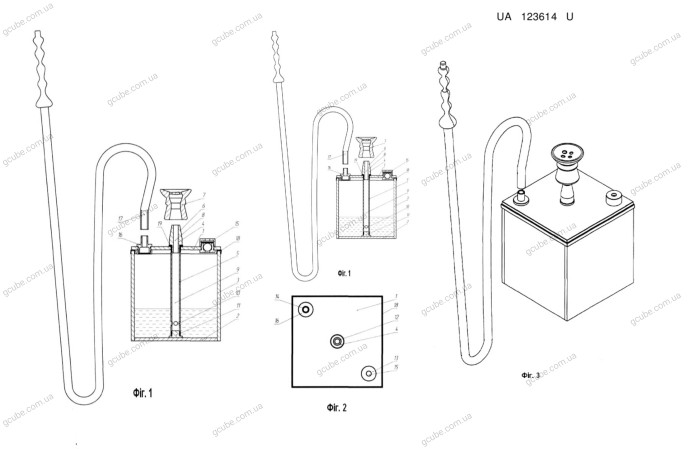

1. A device for filtering and cooling smoke in a hookah, containing a vessel for liquid, made in
in the form of a parallelepiped, and a shaft with an axial hole fixed on the upper wall of the vessel so that one
part of the mine is located above the vessel and serves to install a tobacco cup on it, and the other
located in a vessel, wherein the vessel includes at least one purge valve and at least one
connector for a hose, which differs in that the upper wall of the vessel is made removable, mine
consists of a head that has a cone-shaped cup adapter, an axial hole and an internal thread on
the opposite end from the adapter, and the tube, which has an external thread on the upper end and on the lower tip
an internal thread, and a plug having a cylindrical
a part with an external thread, while in the assembled device the lower part of the tube is screwed on
the cylindrical part of the plug, and the shaft head is screwed onto the upper part of the tube and presses the upper
the wall of the vessel to the edges of the side walls of the vessel, and in the lower part of the tube above the external thread
at least one hole communicating with the axial hole of the tube is made.
2. The device according to item 1, which is characterized by the fact that the container for the liquid is made in the form of a cube.
3. The device according to item 1, which is characterized by the fact that the connector for the hose is installed on the upper wall of the vessel.
4. The device according to item 1, which is characterized by the fact that the purge valve is a ball outlet valve.
5. The device according to item 1, which differs in that between the head of the mine and the upper wall of the vessel is placed
at least one O-ring.
6. The device according to item 1, which differs in that on the edges of the side walls of the vessel facing the upper wall
vessel, placed seal.

Financial information

The form of transfer of rights is the direct sale of a patent and rights to a mark of goods and services.

The invention is on sale now, it is used in the manufacture of G CUBE ™ hookah! , without analogues in the Ukrainian market.
There are also maintenance services (preparation for the summer season), urgent repairs and individual design.

The hookah market is growing and expanding.
This is not surprising, since the history of hookah goes back far into the past!
There was no entry to the markets outside of Ukraine!
There were retail sales in a small amount outside Ukraine through trading floors.
The biggest demand for the product starts from the end of March to the month of October + December (gifts for the holidays).

In the absence of financial investments in advertising and a small set of advertising tools:
On average, for 1 year from 370 hookahs at the peak of anti-covid security measures (2020-2021).
The production cost of the product is low.
We can discuss more detailed cost information if you are interested.

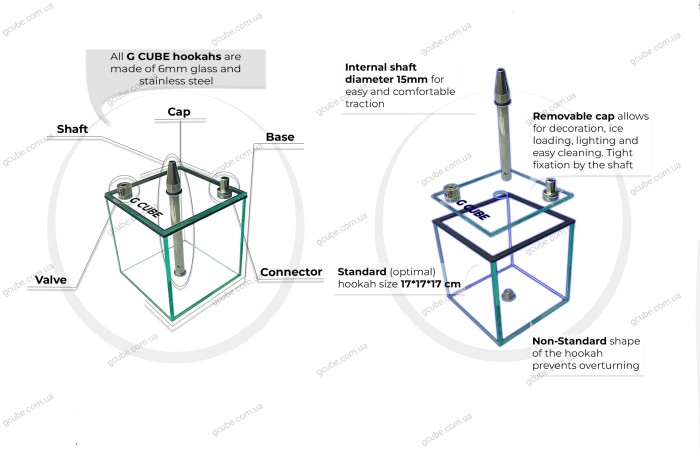

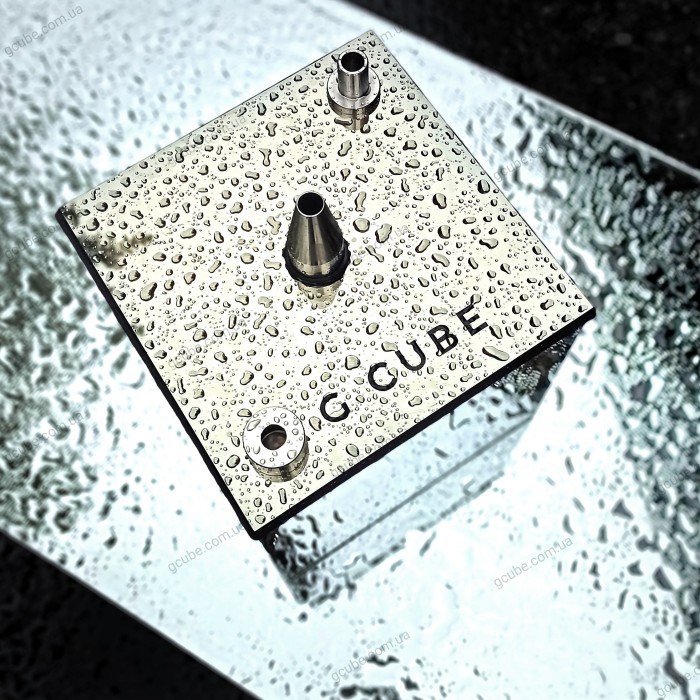

The main idea of the G CUBE ™ product is high practicality, maximum taste transfer and stylish design combined in handmade hookahs at an affordable price.

What's included:

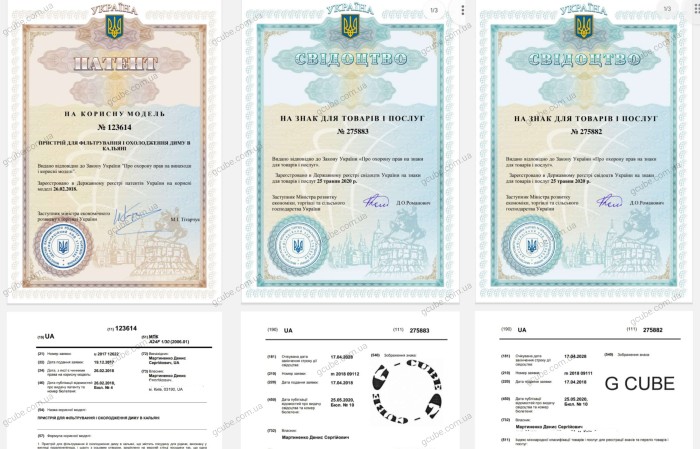

- Patent (property right);
- Trademark (property right);
- Website, domain, hosting "gcube.com.ua";
- Google account "[Use the button below to contact me]";
- Instagram account "@gcube_hookah" ;
- Partially client base (maybe).

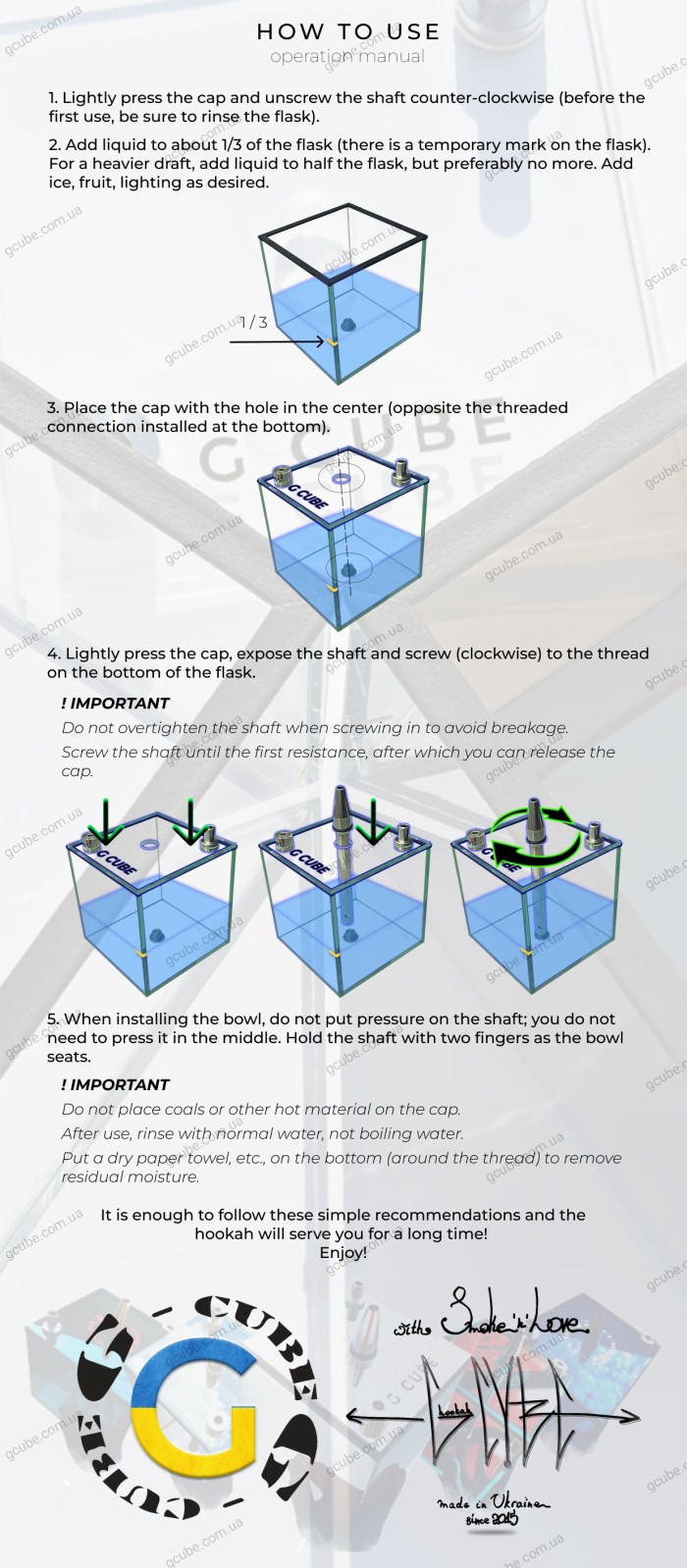

I can teach, tell, show, advise, recommend on all assembly issues.

The price is not final. We can trade.

More photos can be viewed here, provided that you are 18 years old.
