TRAILER AND METHOD FOR LOWERING TRAILER BED

[Category : - MECHANICAL ENGINEERING- OTHER- CONSTRUCTION HOME IMPROVEMENT]
[Viewed 823 times]

Video of working principle = Search Youtube.com---> Trimork

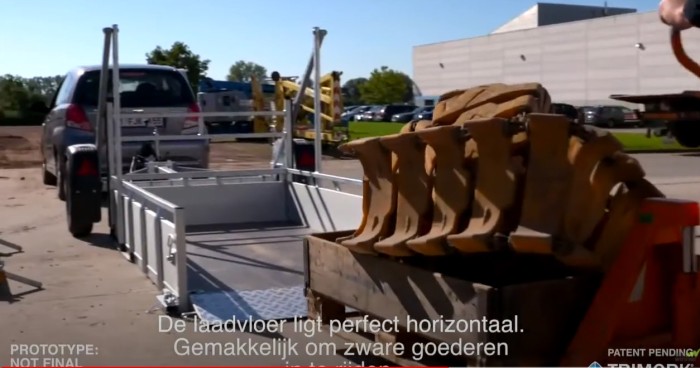

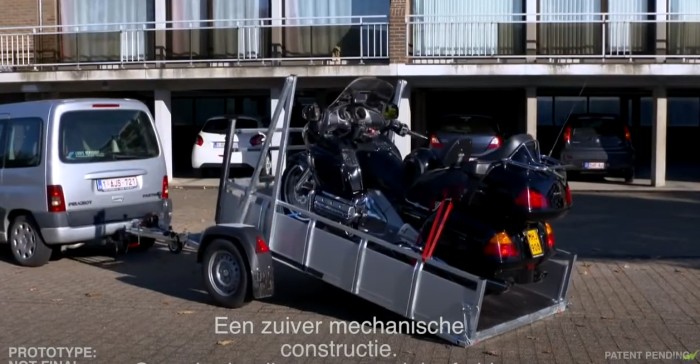

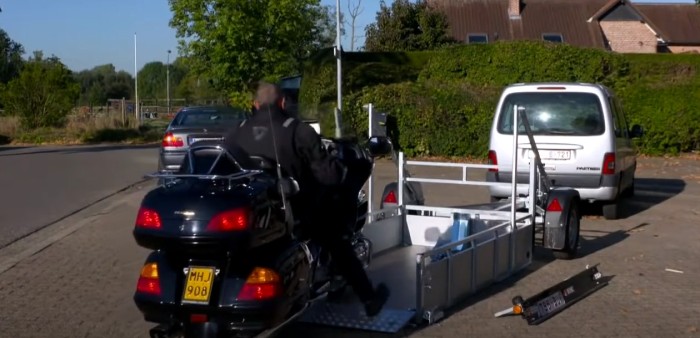

A trailer with a trailer bed (2) and a wheel axis (4) that is mounted on a shaft (3), wherein the trailer bed (2) along with the shaft (3) and the wheel axis (4) are connected by a lifting device (10), the lifting device (10) is pivotable around the wheel axis (4) mounted on the shaft (3), the trailer bed (2) is tiltable around a hanging axis (14) connected with the lifting device (10), which hanging axis (14) is mounted fixed with the trailer bed (2), and the distance (B) between the hanging axis (14) and the wheel axis (4) is at least equal to the distance (D/2) between the wheel axis (4) and the front-end (7) of the trailer bed (2).
