Women's garment

[Category : - Beauty, clothes & personal articles- Wearing apparel]
[Viewed 876 times]

The present invention relates to a specific construction of bra, in particular the use of stabilization element.

Abstract

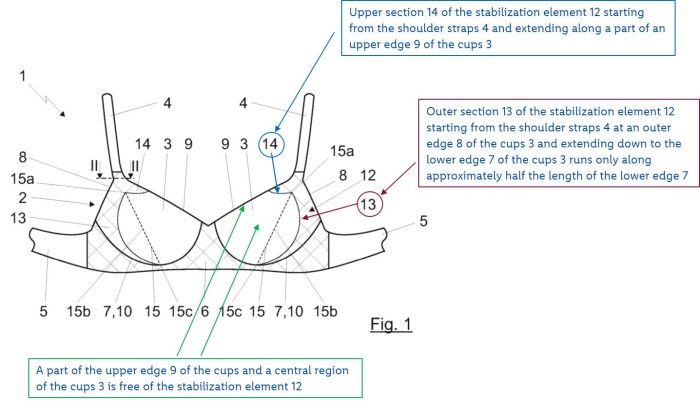

The invention relates to a women's garment (1) comprising a constructed bust part (2) having two cups (3), and two shoulder straps (4) attached to the cups (3). The cups (3) are formed from at least two foam layers (11) joined together via thermoforming. The two cups (3) have a thickening (10) at the lower edge (7) thereof, which is formed during the thermoforming of the foam layers (11) and runs along the breast. A stabilisation element (12) is arranged between the foam layers (11), having a section (13) starting from the shoulder straps (4) at an outer edge (8) of the cups (3) and extending down to the lower edge (7) of the cups (3), and a section (14) starting from the shoulder straps (4) and extending along a part of an upper edge (9) of the cups (3). A part of the upper edge (9) of the cups (3) and a central region of the cups (3) are free from the stabilisation element (12).

A few key details:

- 1 patent family with an earliest priority date of 27 Apr 2016
- 6 granted patents, including granted German Patent DE102016107774B4, granted Australian Patent AU2017256430B2, granted Chinese Invention Patent CN109414079B, granted HK Standard Patent HK40000918, granted Singaporean Patent SG11201809433P, and granted Indonesian Patent IDP000076052
- 5 pending patent applications, including pending US patent application US16/096,278, pending EP patent application 17716211.2, pending Cambodian patent application KH.P.2018.00046, pending Vietnamese patent application 1-2018-04786, and pending Sri Lanka patent application 20200
