TOILET COMPACT PRO

[Category : - Bathroom]
[Viewed 496 times]

Technical problem solved by this invention is the excessive size of bathrooms in various means of transportation (such as ships, planes, trains, buses...), various smaller prefabricated buildings (residential containers, office containers, prefabricated houses...), various low-budget buildings which require the smallest possible square footage of bathrooms due to the economic savings of space and money. Luxury buildings can also apply this invention because it is already becoming standard for each bedroom to have its own bathroom for the comfort of each user of the property.
Another technical problem solved by the present invention is the health risk and water consumption in bathrooms.
Another technical problem solved by the present invention is the small number of additional elements in bathrooms that would make for an easier and faster usage of bathrooms or facilitate its use for several purposes.

The primary object of the invention is to provide a more compact, hygienic and economical toilet system than at present.

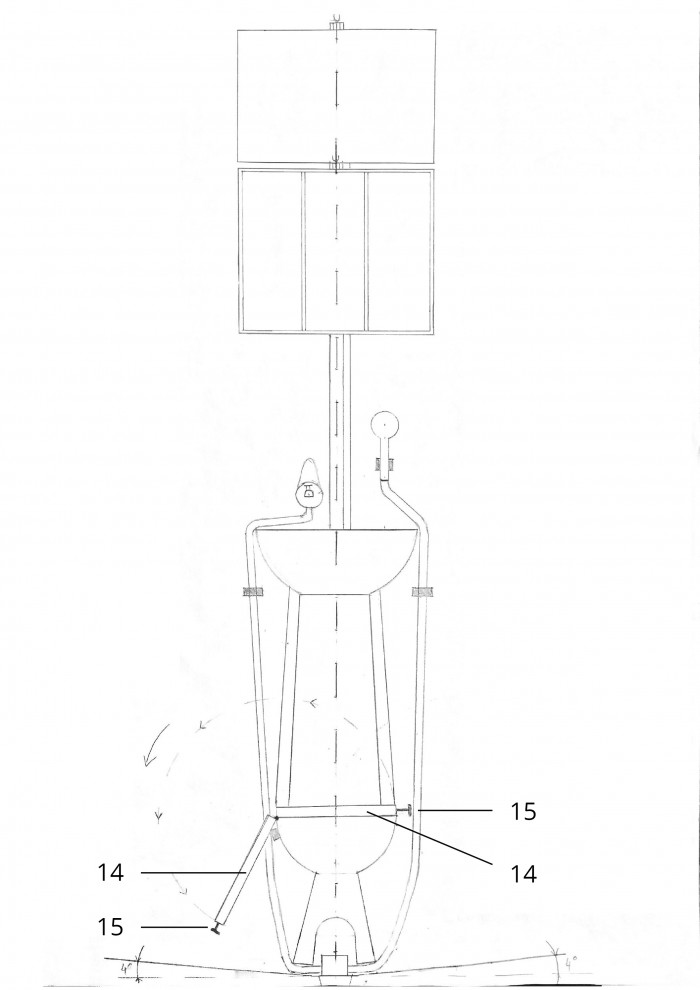

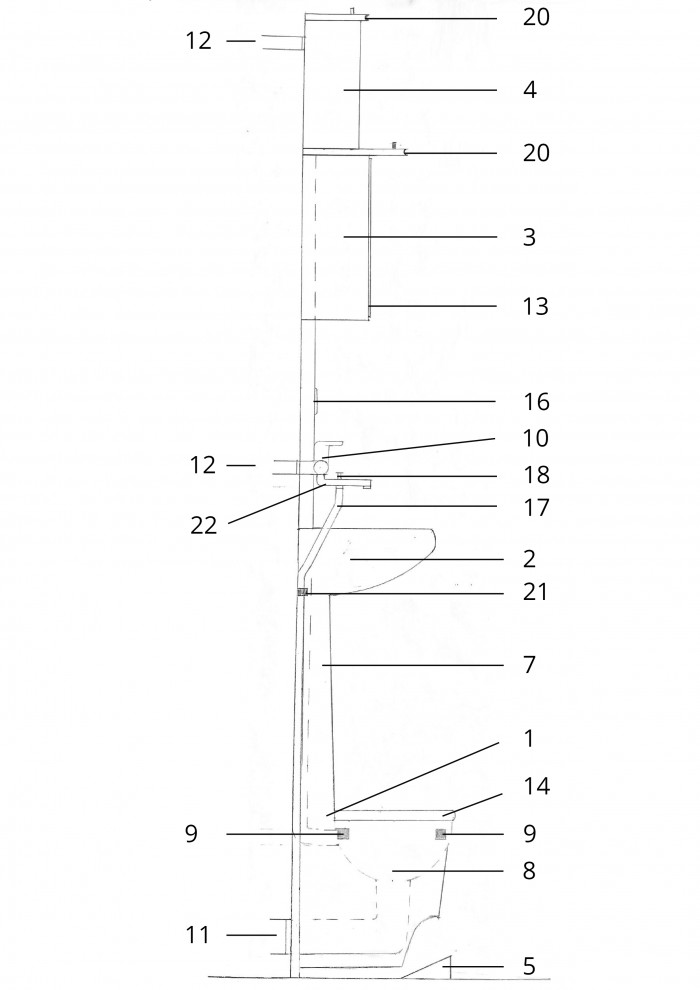

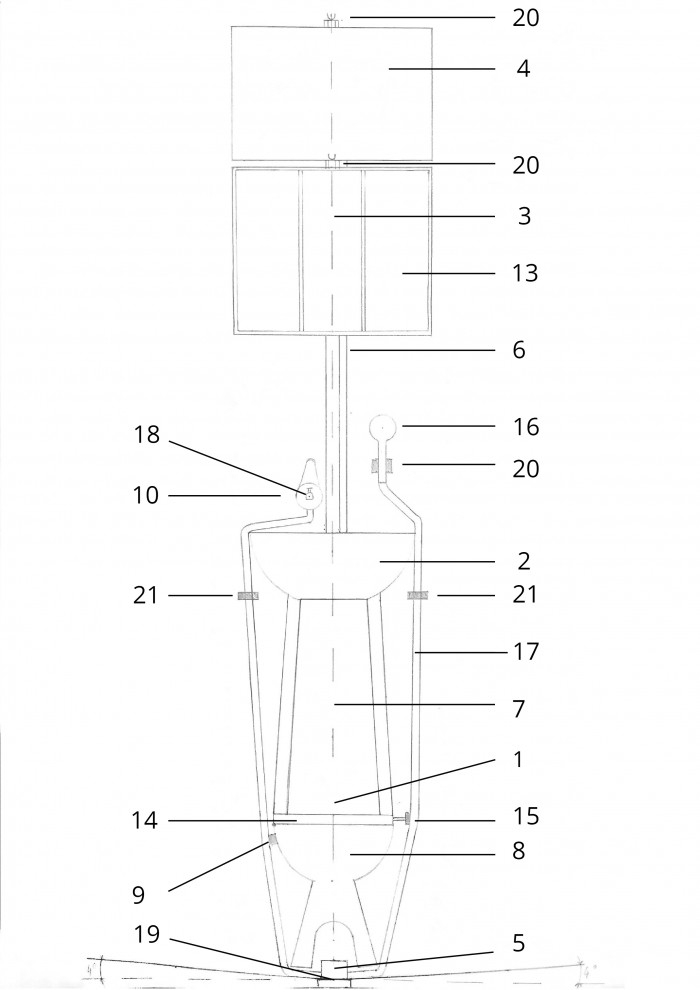

This invention is more compact than conventional bathroom appliances because the toilet bowl, cistern, urinal, shower, sink with faucet and bathroom cabinet are all in one vertical unit, ie. one below the other, instead of conventional bathroom devices in which the toilet elements are separated and placed horizontally, ie. next to each other and thus take up more space in the room.
The present invention is more hygienic than standard toilet systems because it has a cistern foot pedal, which allows users to not contaminate their hands when activating the toilet cistern, and also has a bathroom shower which the user can wash the toilet seat and faucet with, because most of the users have the most physical contact with that parts of the bathroom. Even the whole invention can be washed because of the length of the shower hose.
The present invention is more economical than standard toilet bowls because it uses water from the sink drain to flush the toilet bowl, thus reducing the need to activate the cistern during minor toilet bowl contamination.

Financial information

LINK TO MY PATENT PUBLICATION:
Link

I am looking for percentage of sales aka. Royalties, possible negotiation.

This invention hasn't been previously sold or marketed. The patent can be converted to international patent until 11th of March 2022.

Patent publications:

No publication

Asking price:

Make an offer
