HIGH-SPEED HYDRAULIC FORMING OF METAL AND NON-METAL SHEETS USING

[Category : - MECHANICAL ENGINEERING]
[Viewed 660 times]

A system and method for hydraulic forming of sheets is provided. A coil is connected to a pulse generator storing electric energy and discharging the electric energy to the coil, creating a first electromagnetic field in the coil. A conductive plate placed on the coil such that the first electromagnetic field causes creating of a second electromagnetic field in the conductive plate, in a direction opposite to the first electromagnetic field, creating a force. A pressure chamber filled with a fluid and placed on the conductive plate. A piston placed inside the pressure chamber to transfer the force to the fluid. A sheet placed on the pressure chamber, the fluid being configured to receive the force from the piston and transfer the force to the sheet. A die placed on the sheet, wherein the force transferred to the sheet from the fluid causes the sheet to take a shape of the die.

Patent publications:

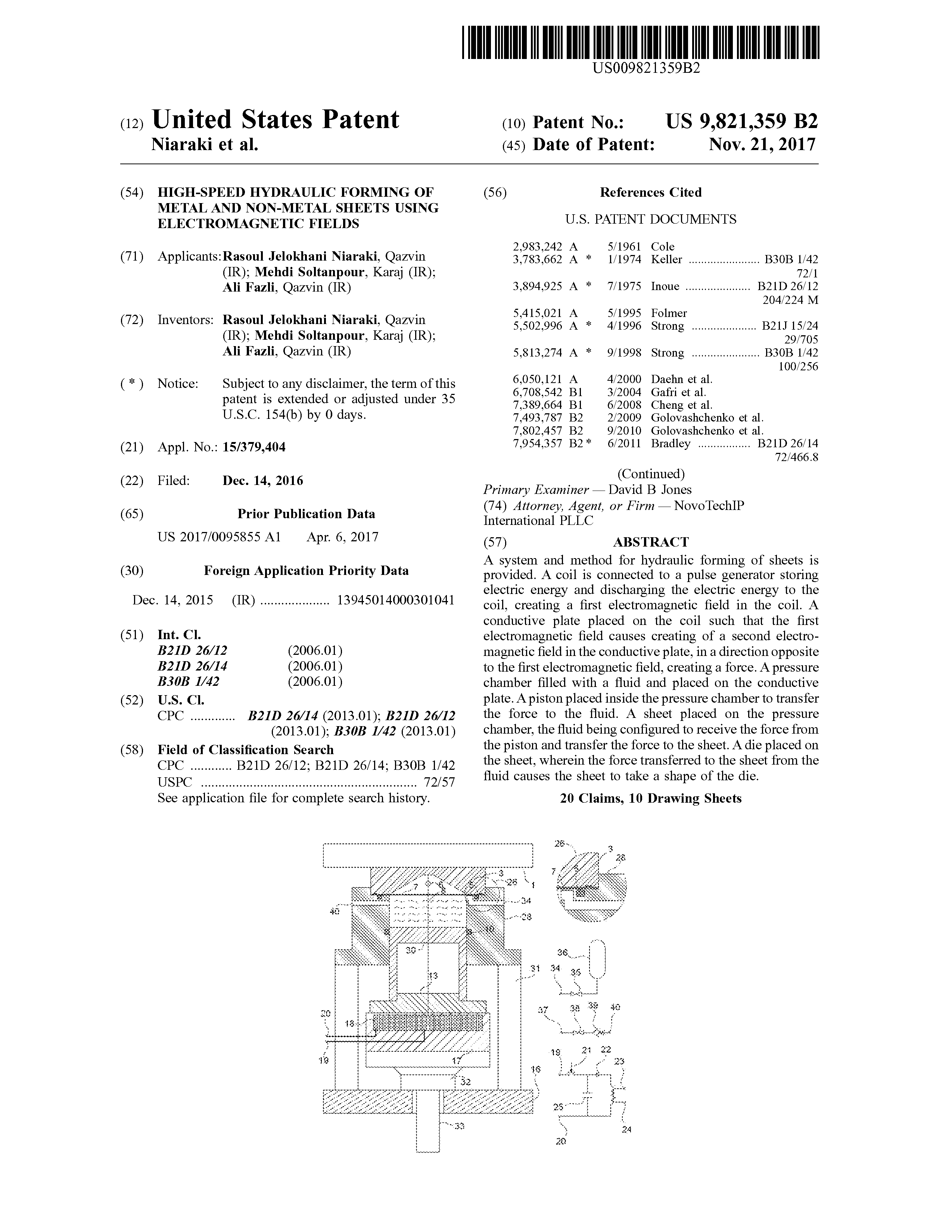

US 9821359

Asking price:

Make an offer

Rate this patent

Great invention
Viewed: 660 times

Seller:

rs.jelokhani (Iran)
