VARIABLE DISPLACEMENT HYPOCYCLOIDAL CRANKSHAFT

[Category : - Automotive Accessories - Pneumatic Accessories- Motors]
[Viewed 1056 times]

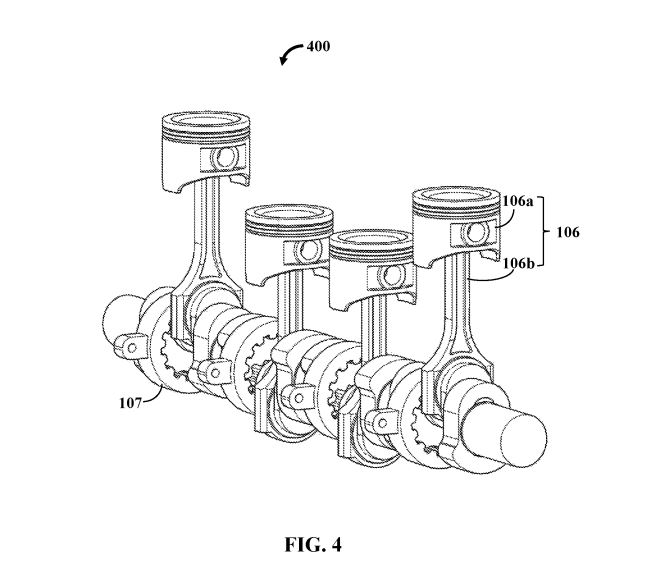

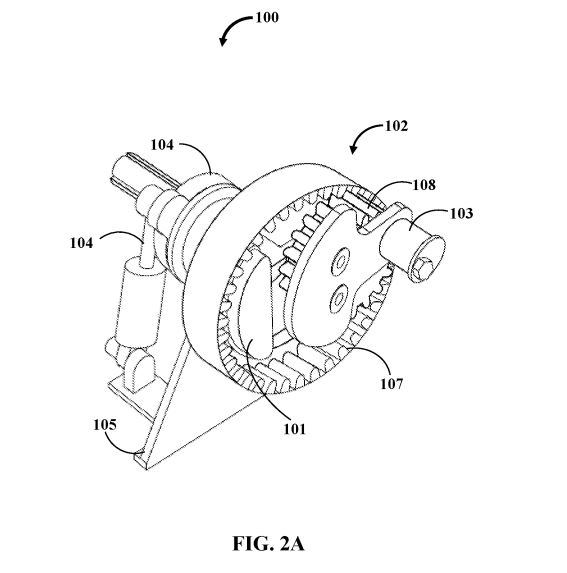

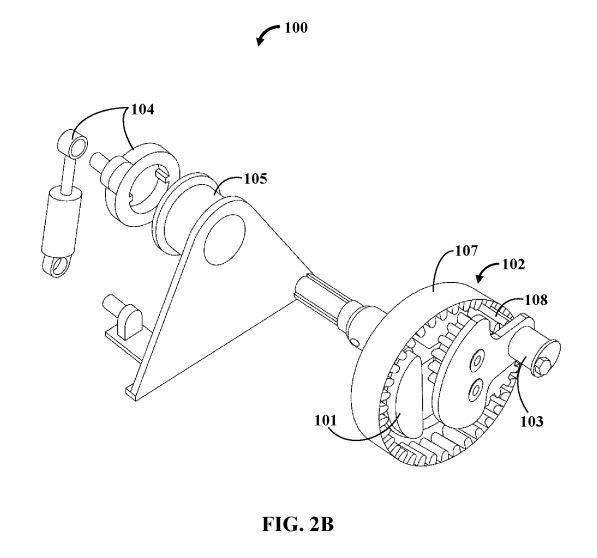

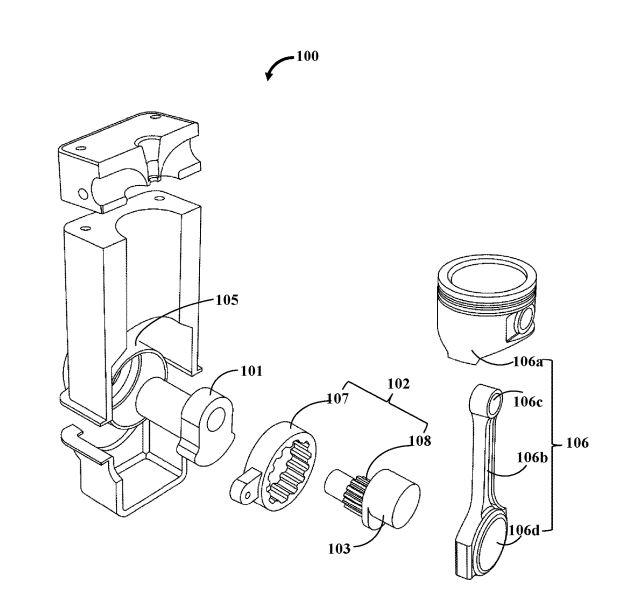

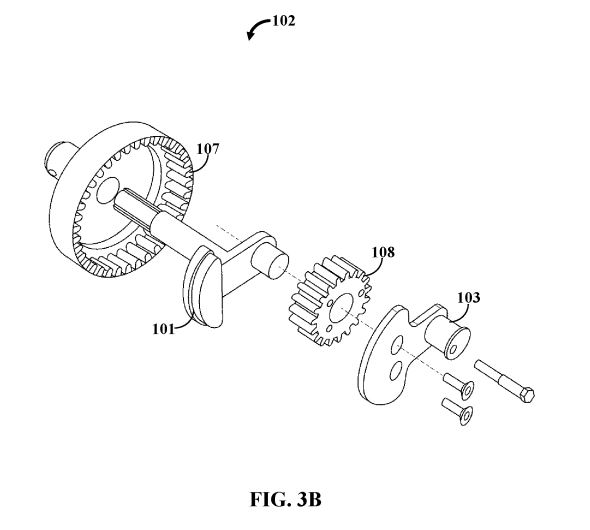

A variable displacement hypocycloidal crankshaft includes a crankshaft, a hypocycloidal gear assembly, an external pin, and an angle-setting device. The crankshaft mounted in a chassis houses the piston assembly. The hypocycloidal gear assembly includes an internal gear and an external gear. The crankshaft is mounted on the chassis coaxially with the internal gear and rotates freely in the center of the internal gear. Then, the external gear is mounted on the crankshaft movable pin and engaged with the internal gear thereby rotating the external gear. The external pin operably engages the piston assembly. The angle-setting device mounted on the chassis operably engages the internal gear. The angle-setting device is coaxial to the hypocycloidal gear assembly for selectively varying the linear displacements of the piston assembly. The external gear meshes with the internal gear for converting the continuous rotation of the crankshaft to varying linear displacements of the piston assembly.

Financial information

The main aids of this patents are as following:
* Create a change in the piston line movement
* Openness of linear change radius
* Good Piston Performance
* Flexibility
* Separate Control of Engine Pistons
The supplementary documents are attached.
The basic price for this patent starts from 100000.00 USD. If you are interested, please let us know about your offer and conditions.

Patent publications:

US 10072568
