THE CHANNEL SIGNAL GENERATION TECHNOLOGY

[Category : - Telecommunications]
[Viewed 797 times]

Technical summary:
The invention relates to communication technology and can be used for generating and processing a signal based on an orthogonal basis of eigenvectors of a sub-band matrix. The technical effect of the claimed group of inventions consists in a low level of out-of-band emission of communication signals. To achieve this, information to be transmitted is used to generate a signal with channel multiplexing based on an orthogonal basis of eigenvectors of a sub-band matrix, calculated for a given frequency range or set of frequency ranges in a given frequency band. On the receiving side, the trusted recovery of information from the received signal is provided. In the receiving/transmitting equipment, any modifications can be used before and after orthogonal multiplexing based on eigenvectors of a sub-band matrix, intended to improve transmission speed, reliability, noise immunity and efficiency, reduce energy expenditure and increase calculating speed and other parameters.
Business potential:
The channel signal generation technology (RVS) – allows to generate signals with high spectral efficiency and low power consumption. Due to the low level of out-band radiation, it is possible to increase the density of communication channels in the selected frequency band and reduce the impact on neighboring channels. This allows to increase the density of receiving devices placement.
The technology allows you to dynamically change the speed of the transceiver depending on the needs and the presence of interference in the air.

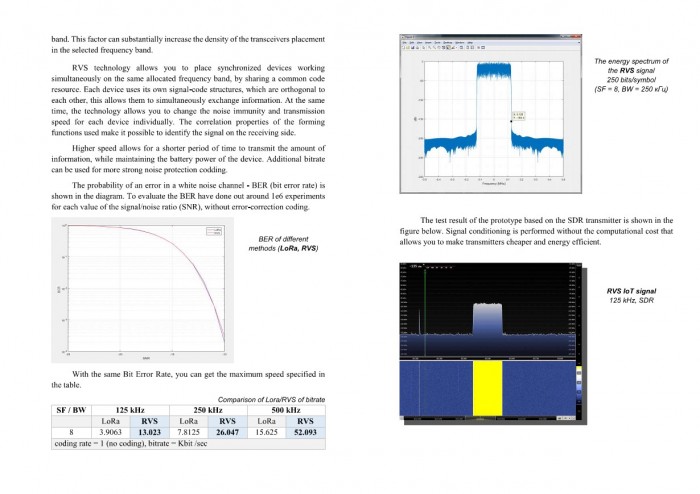

By comparison with LORA, the speed of RVS is 3 times higher with the same Bit Error Rate.
The technology allows you to configure the operating frequency range, with the exception of busy segments of the frequency range, which reduces the impact of channels of other systems and increases noise immunity. The lower level of out-of-band radiation allows efficient use of the available segments of frequency range, without affecting neighboring channels. In the analysis of the radio air load in real time, it is possible to dynamically adjust the operating frequency range.
Low requirements for computing resources can reduce the cost of the transmitting device.
The technology allows to additional encrypt the data streams by channel encoding based on the native vectors of the subband matrix, which increases the security of the communication channel.
When generating a signal, filtering is not used and the signal is not subject to distortion, which allows you to maintain high noise immunity and reduce the requirements for computing resources of the receiving equipment.
Also has developed RVS multiplexing technology for wireless communication systems that are using the frequency division multiplexing - WiFi, LTE, 5G, etc.

Financial information

The technology allows you to create effective IoT networks, wifi networks with encryption at the physical level, can be used in the development of 6G networks.
We can provide technical support for your projects.

Patent publications:

WO 2020005118
