BEVERAGE COOLING DEVICE

[Category : - ELECTRONICS]
[Viewed 1033 times]

Hello, my name is Vladimir, I would like to offer you a patent I own, and it can truly be called revolutionary. Thanks to my invention, you will no longer have to wait for your drink to cool, blow it or use other manipulations, from today you will drink drinks and eat soups, etc., at a temperature that suits you personally. There are currently no devices that can cool the drink so quickly and easily. This technology can be used either as a standalone device or added to existing coffee machines or other devices.
How the invention works:
By supplying air under pressure from an oil-free compressor to the glass, which is screwed (inserted) into the connecting cover, the process of cooling the drink occurs, which indicates a simplification of the design of the device and, accordingly, achieving the desired technical result.

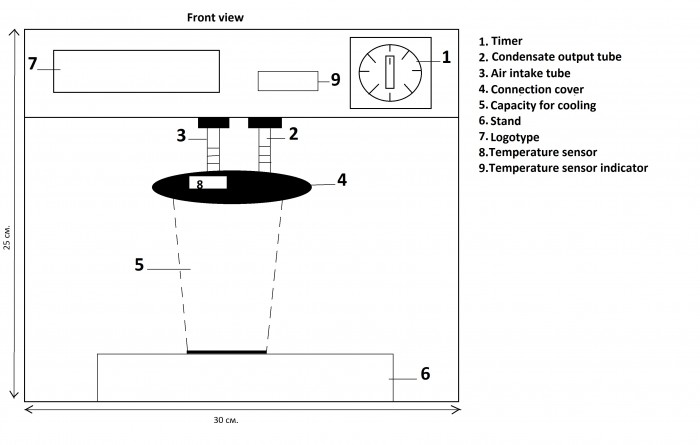

The principle of operation of the device. In the housing 1 of the device, by connecting to the power supply, a compressor 2 (oil-free) is launched, forcing air under pressure through the air tube 3 to the connecting cover 4, to which the glass with a hot drink is attached. As a result of heat exchange between cold / cool air and a hot drink, as well as evaporation of the drink, condensate forms on the wall of the connecting cover, which is discharged to the condensate tank under the pressure of the injected air 6. The temperature sensor is located in the connecting cover and detects the temperature of the drink, and then on the timer the temperature required for cooling may be indicated. After the drink has cooled to the desired temperature, the timer turns off independently or it can be turned off manually. The air tube 3 and the condensate outlet pipe 5 contain filters to prevent possible impurities from the air / condensate tank from entering the drink.

Thank you for attention. (translated through Google, sorry if something is misspelled:)

You can contact me as follows:
e-mail: [Use the button below to contact me]
viber, telegram: +380971425944
facebook: Vova Khomyak

Patent publications:

WO 2020032908

Asking price:

Make an offer
