Multi level rack apparatus having intersecting arms

[Category : - Fishing and hunting]
[Viewed 844 times]

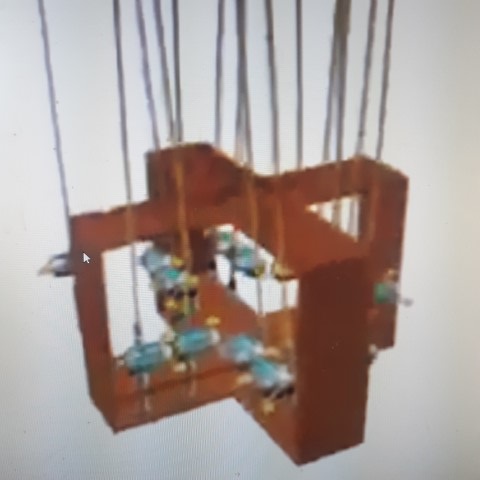

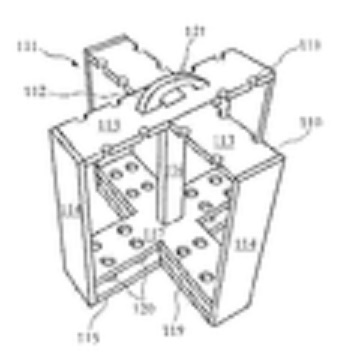

A multi level rack apparatus for holding elongated items upright for storage includes a rack frame having an “X” shaped profile defined by four arms which extend out from a center portion. A structural exterior is formed from a top support level, an side wall, and a base support level, and extends across each of the arms. Disposed inside the rack frame is a lower support level which is parallel to and positioned between the top support level and base support level and a vertical support post which helps maintain the relative position of the support levels from the center portion. A plurality of sets of holding sections are disposed in each of the support levels, with each set aligned between the support levels such that an elongated item can be held upright in place by one set of holding sections.

Stores often use displays to showcase particular items which they wish to draw attention to, as well as for organizational purposes. However, standard racks or stands offer limited amounts of space due to their linear or round design, requiring consumers to rotate the rack in order to reach their desired item, or walk down the aisle if the limited selection on the rack has been depleted.

Ingenious, practical and useful, this Rack is comprised of a product capable of providing stores and other establishments with enhanced storing capabilities, while offering an organizational tool as well as an eye-catching fixture within the space. This innovative product consists of an “x” or “+” shaped rack capable of storing various items such as fishing poles, baseball bats, hockey sticks, golf clubs and the like- which currently sit on linear or round stands- while facilitating access to such items for the consumer. The Rack allows items to be stored and displayed on all sides; a series of holes, notches, grooves and shelves will be available throughout the surface of the rack to hold the items, which increases the display capacity as well as the visibility of the items, improving the overall consumer experience.

The number of slots for rods can be modified and size of rack changed to accommodate more poles. Different sizes can be constructed.
