Air purifier with cooling or heating the air

[Category : - Heating & Cooling]
[Viewed 1103 times]

An air purifier comprises a filtering subsystem having a filter 17 to remove large particles from air that is drawn in by a fan 2, passing the filtered air through a bent tube 8 having a plurality of holes and is submersed in water 7 in a container 15 to produce bubbles 6 and to remove fine particles in the air, and then drawing the air removed of large and fine particles through ventilator subsystem comprising a cooler or heater 3, 14 to control the humidity and temperature of the air. Filter 17 may be a sponge cloth, cooler or heater 3, 14 may comprise of a thermoelectric unit 14 utilising the Peltier effect and a stainless steel spiral tube 3 that is heated or cooled by the thermoelectric unit 14. A temperature sensor 19 and control panel 5 automatically control the air purifier. The water 7 may contain chemicals to remove toxic gases that have be drawn in and the level of water 7 in container 15 may be viewed by a water level meter 11. The water level may be adjusted by admitting and removing water 7 via respective upper 12 and lower valves 10.

Patent publications:

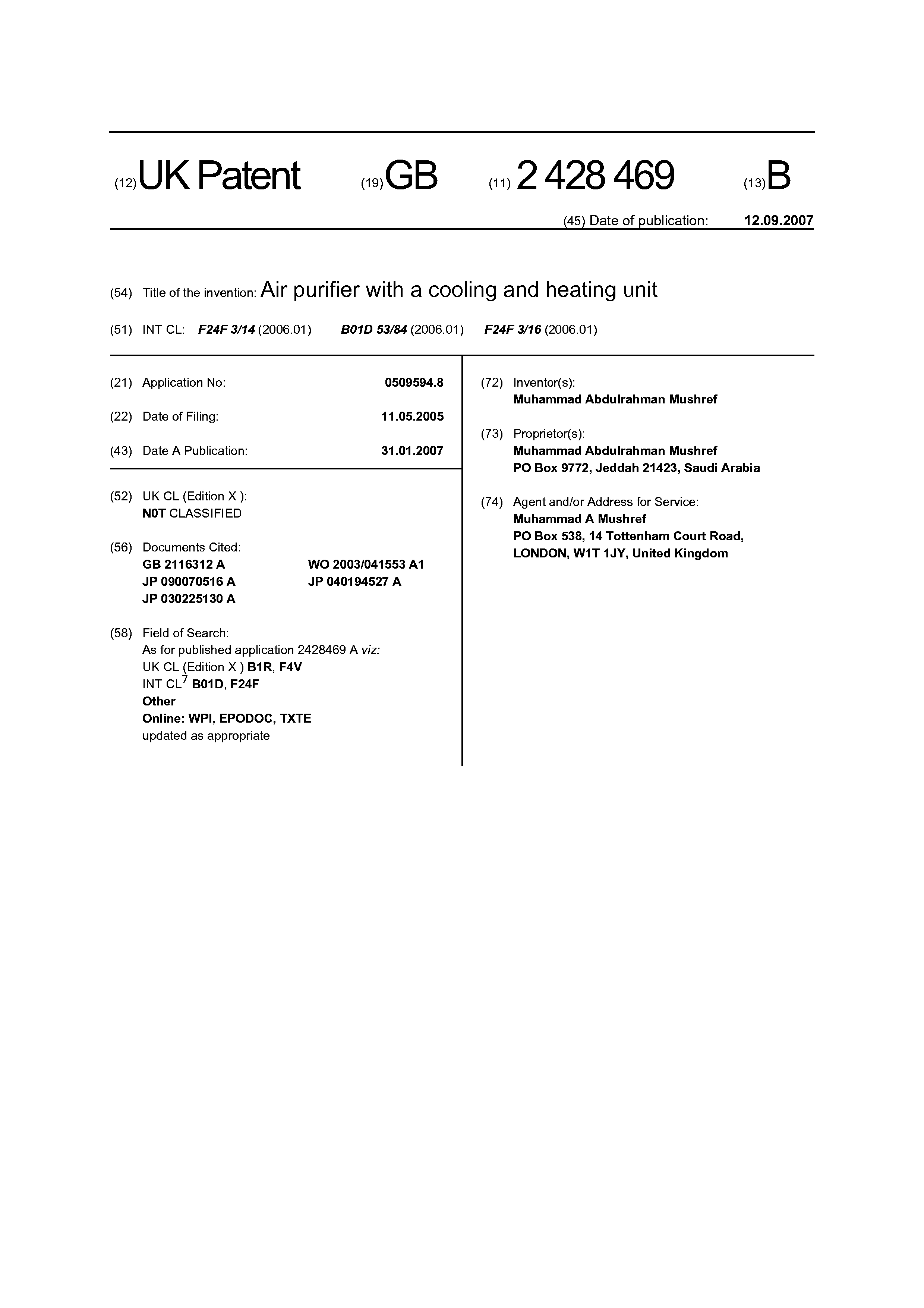

GB 2428469

Asking price:

Make an offer
