Electrical Wire Connector

[Category : - ELECTRICITY & LIGHTING]
[Viewed 1050 times]

An electrical wire connector for electrically coupling together a plurality of electrical wires, which comprises a bridging member having a midsection interposed between a pair of sectional ends each having a lower jaw element integral thereto and an upper jaw element pivotally connected thereto to collectively form a clamp mechanism for receiving a bare portion of electrical wire. A torsion spring positioned between the lower and upper jaw elements serves to supply a downward clamping force that retains the electrical wire within the clamp mechanism. The clamp mechanism further includes a plurality of slots integrated within the structure of the lower and upper jaw elements for accepting therewithin an extended section of the bare portion of electrical wire to effect resistance of tensional forces applied thereto so as to provide for a permanent-like connection that maintains continuity through the electrical wire connector.

Patent publications:

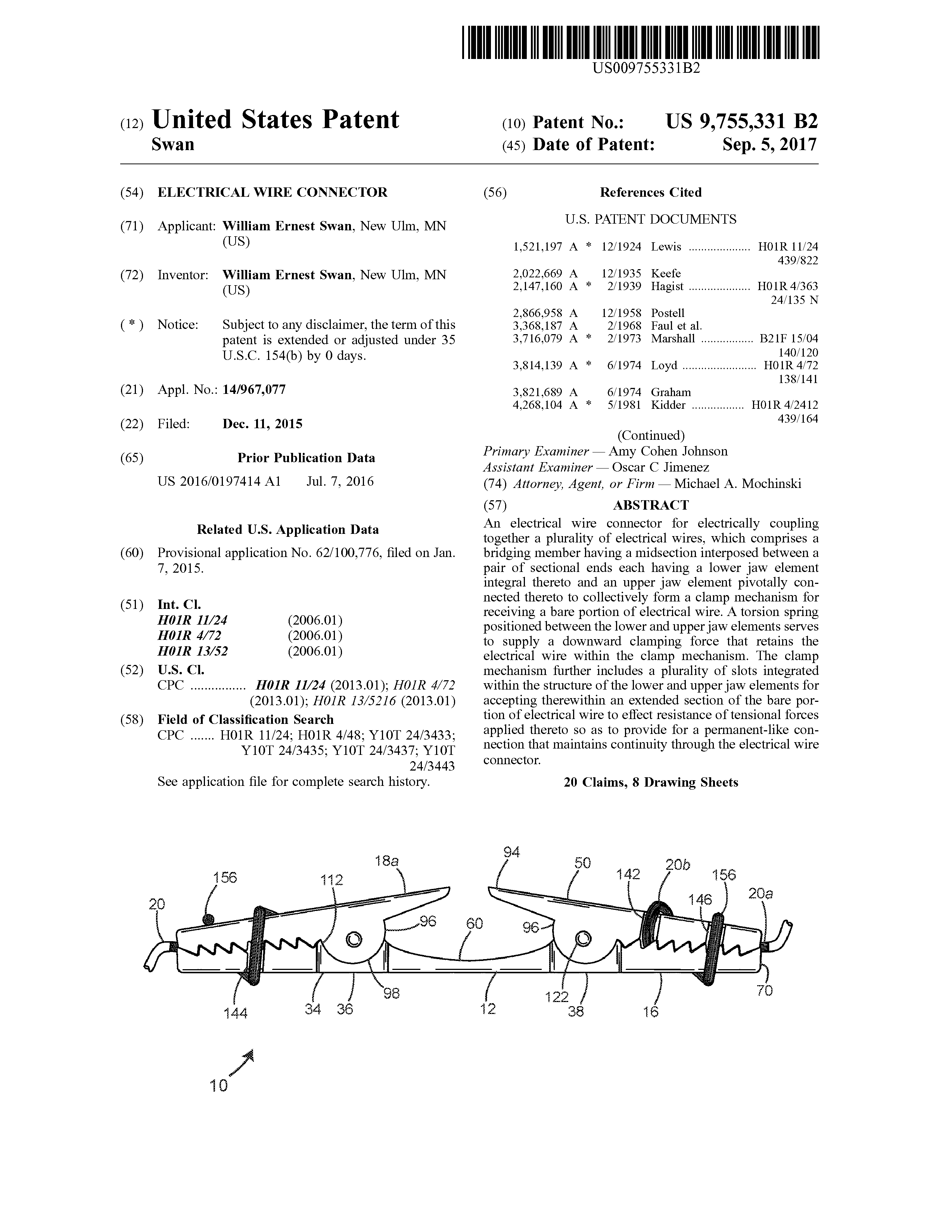

US 9755331

Asking price:

Make an offer
