Prefabricated modular housing unit

[Category : - Construction Processes & Equipment]
[Viewed 1829 times]

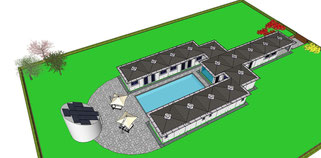

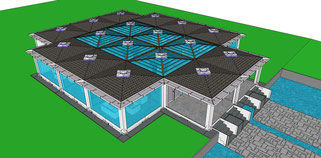

The present invention relates to a modular housing unit comprising base plinths (1) and base frames (6) to support the housing unit, supporting angle columns (8) to support roof trusses (13), horizontal beams (10, 11) to connect columns (8) and supporting vertical beams (12) supporting the horizontal beams characterized in that said base plinths (1) comprise a boxed element (1.2) having side walls (1.3) bearing longitudinal guides (1.5) for brackets (2) supporting conduits (2.4), a first head opening closed by a closing plate (1.4) flush provided with a plurality of holes (1.16) engageable by fixing pins (3) of said columns (8), said holes being arranged in a quincunx pattern on four equal quadrants in which said plate is divided; and characterized in that said supporting angle columns (8) comprise a boxed body (8.1) with a longitudinal overall L-shaped section having a first end fixed to a connecting plate (4) to said base plinth (1) and a second end fixing an element of said roof truss (13) and said horizontal beams (11), wherein said plate (4) comprises holes (4.4) arranged in a quincunx pattern to engage said fixing pins (3).
