Waste bin inserted and adjustable bottle / carton crusher

[Category : - DESIGN PATENTS]
[Viewed 2341 times]

Bottle and Carton Waste Crusher for use as separate tool or as an adjustable attachment for various sized wheelie bins.

Waste bin inserted and adjustable bottle / carton crusher.

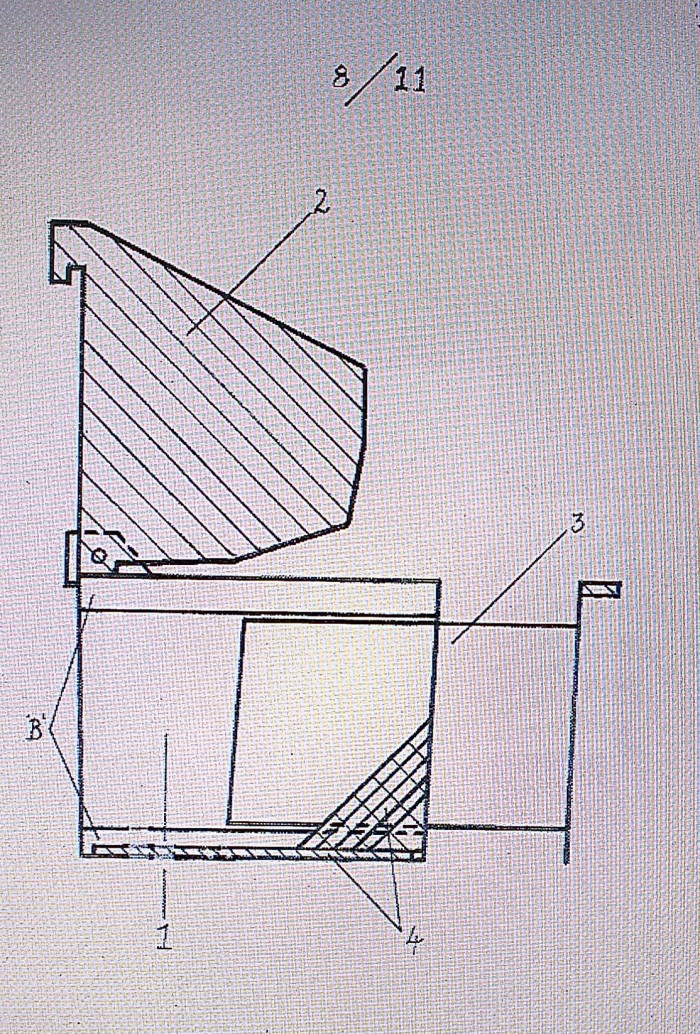

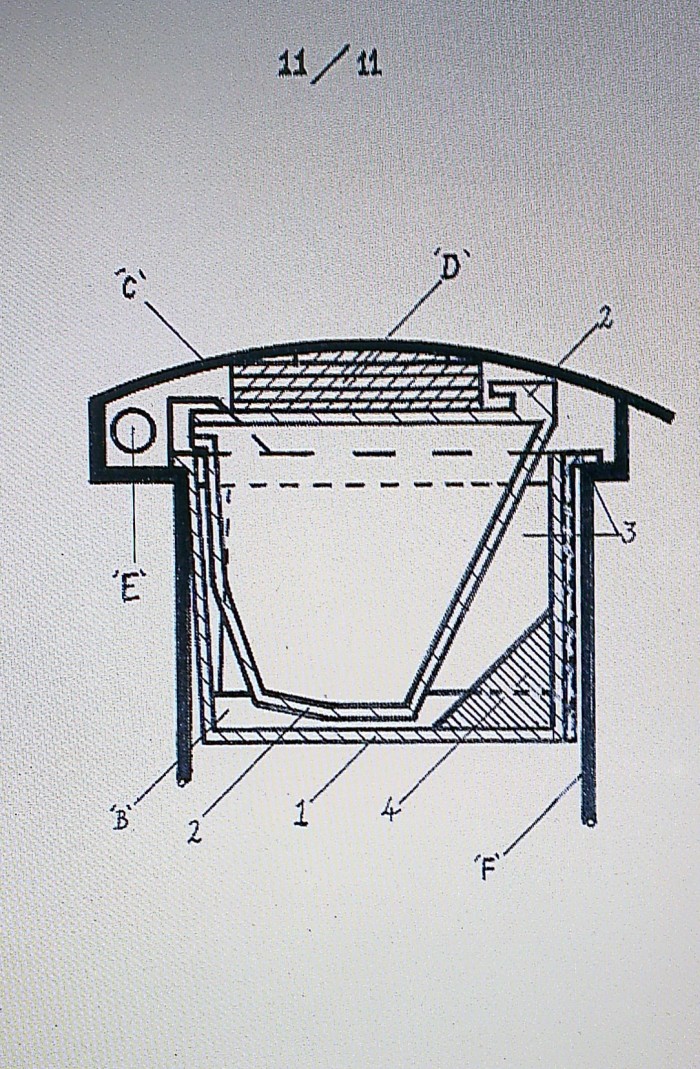

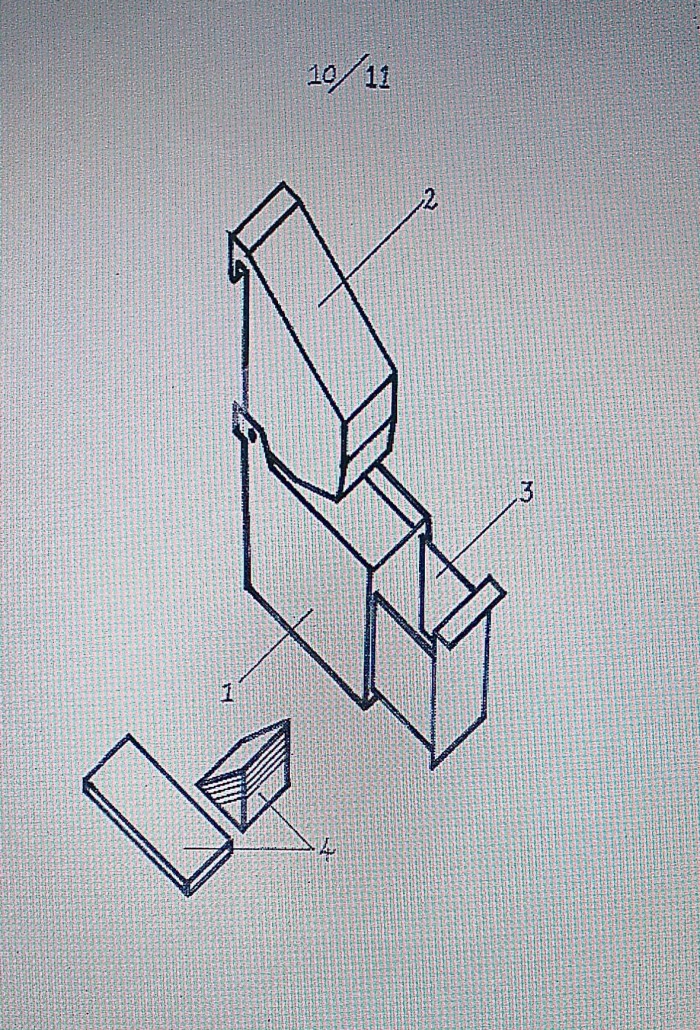

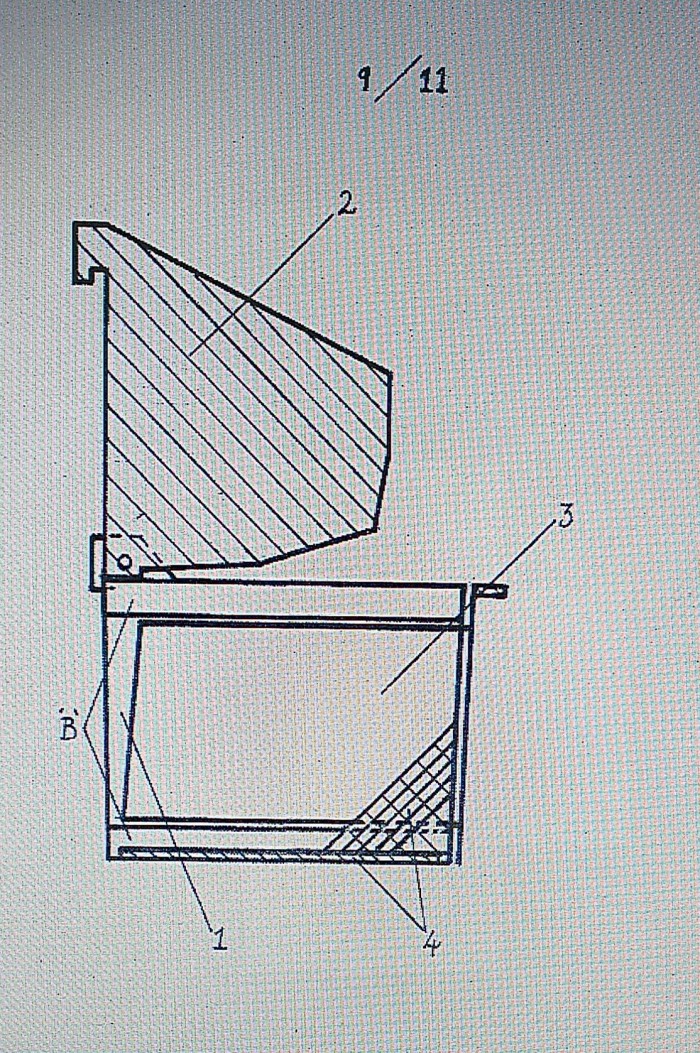

A bottle / carton crusher arrangement comprises base 1 with receptacle in to which bottles and cartons to be crushed are placed so that a crushing lid 2, moveable via axle 3 closes in to the receptacle so as to crush bottles etc. The crusher arrangement can be adapted to sit at top of / within a bin and is also capable of being adjusted, by extension of a draw component so as to fit within bins of various sizes ( top openings ranging from 400 -540 mm), The arrangement may be made from injection moulded HDPE. Removable plates 5 and wedges 6 may be placed within base 1 so as to allow for the optimum crushing. Lid 2 may also be attached to a bin lid 12 by the use of filler blocks 11.

Patent publications:

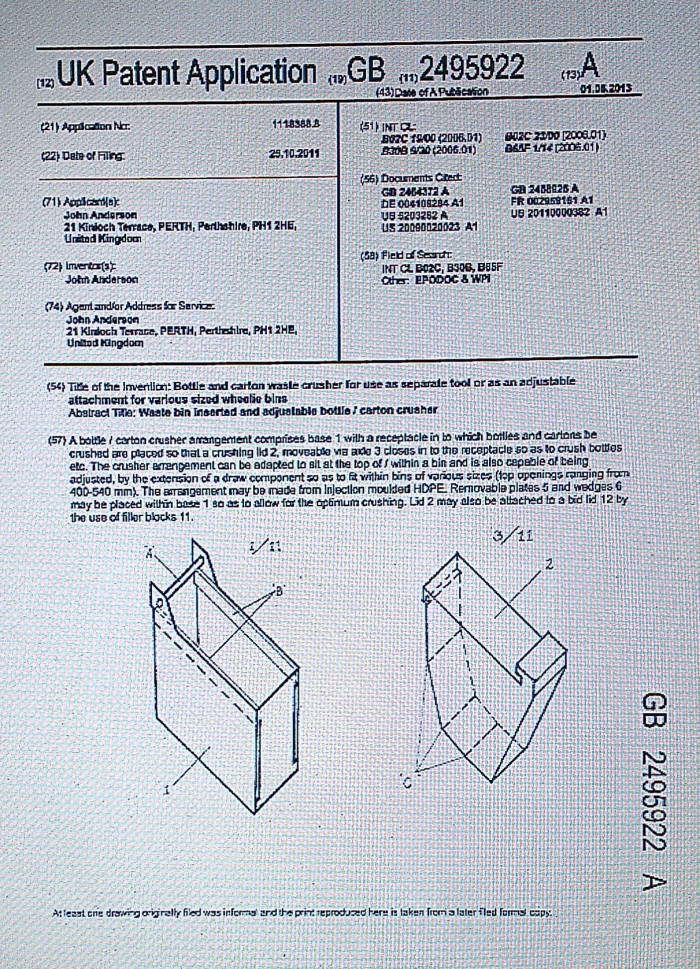

GB 2495922
