Fabrication Method for Metal Coffee Dripper With Collar Windows

[Category : - Cooking]
[Viewed 2736 times]

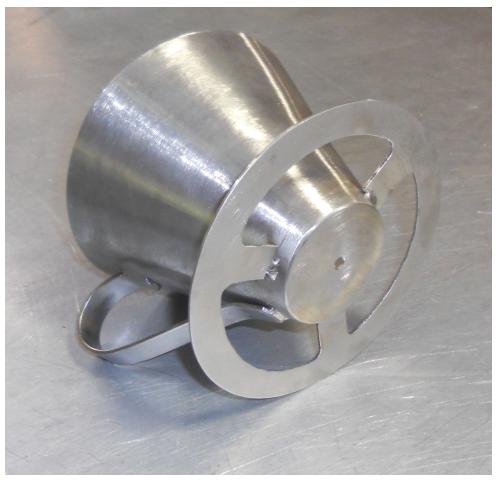

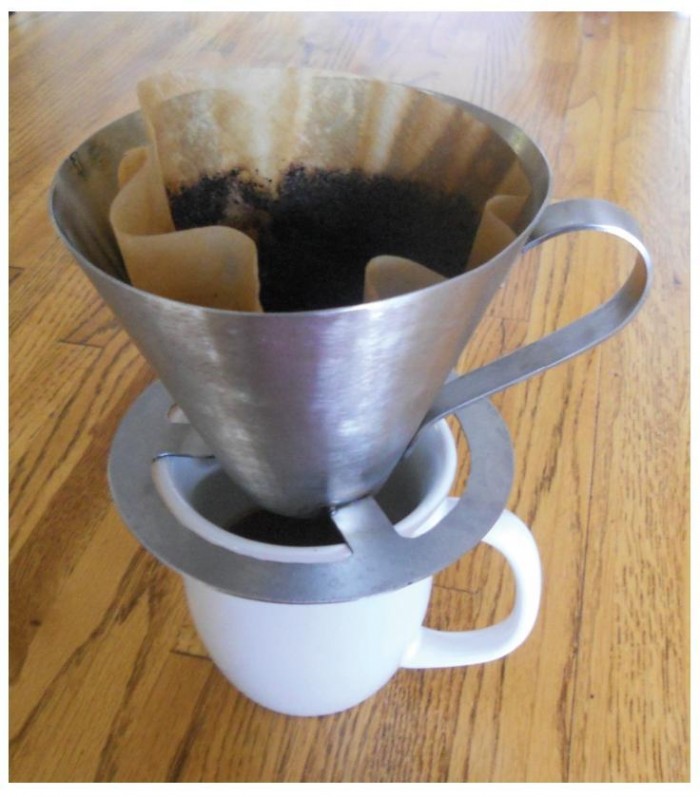

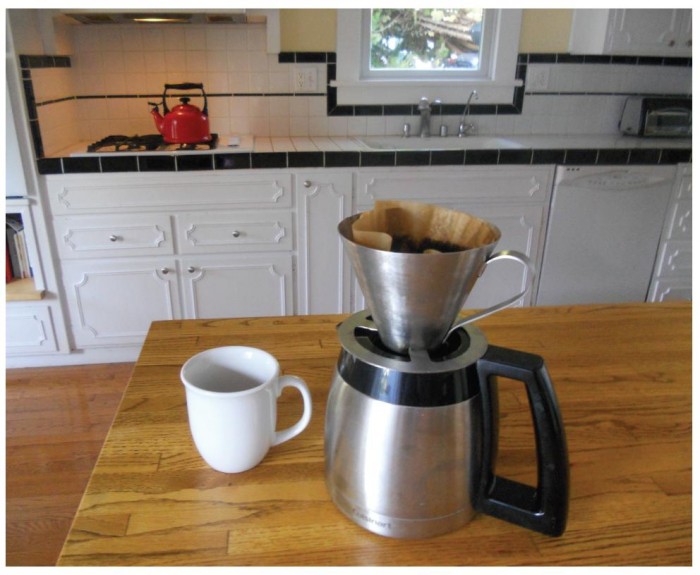

A method for fabricating a manual drip coffee cone from sheet material is comprised of three general steps: In the first step, a conical body 1 is formed from sheet material in the shape of a truncated cone to hold a coffee filter. The base of the conical body 1 forms a drip ring 2, which directs dripping coffee into a receiving vessel and prevents the cone from slipping off the vessel. In the second step, a drip plate 3, having at least one drip hole 4, is fixed to the inside of the conical body 1, near the drip ring 2, to form a drip plate 3 at a short height above the drip ring 2 to provide maximum headspace for effective drip filtration. In the third step, a flat ring collar frame 5 having minimal support components is attached to the outside of the conical body 1 near the same height as the drip plate 3 in order to support the cone to sit on top of a receiving vessel to allow a user to see through to the receiving vessel beneath the cone so that the user can view the rising level of coffee inside the vessel below.

Financial information

Seeking: Sale of Patent or Licensing for Royalties

Item: Utility Patent
Issued: April 19, 2011

Intellectual Property:
1) Assignment or license of issued utility patent;

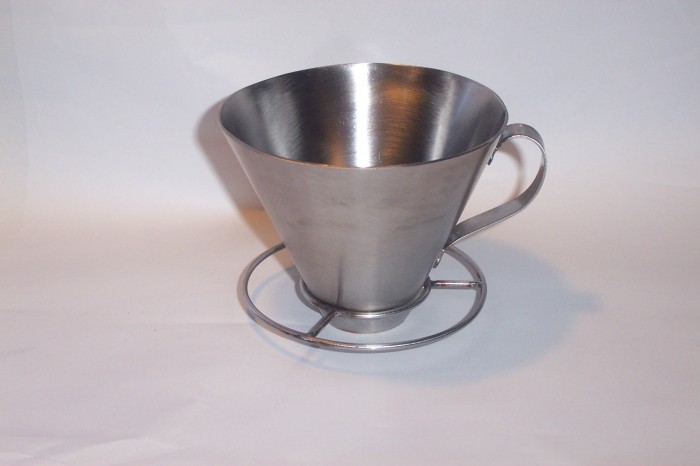

2) Digital photos of 3 different stainless full-size, fully tested and operable prototypes; and
3) CAD design drawings and specifications.

History: Item has at least one potential infringer selling in six countries (weblinks available). My gmail address is stainlesscone.

Other Competitors: A few similar products almost approach infringement, but have not achieved this patent's far superior design for a drip cone that has an actual see-through frame allowing the user to see the level of coffee inside the cup or carafe below it. These poor substitutes either complicate the collar design, are fabricated of screened material that clogs, or don't offer windows in the ring collar.

Patent publications:

US 7926414

Asking price:

Make an offer
