EFFICIENT MAGNITUDE COMPARATOR CIRCUIT

[Category : - Computers and computer accessories - Telecommunications- Security and alarms]
[Viewed 1844 times]

This isa circuit for 4 bit but it can be extended for n bit by continuing it in the similar fashion.

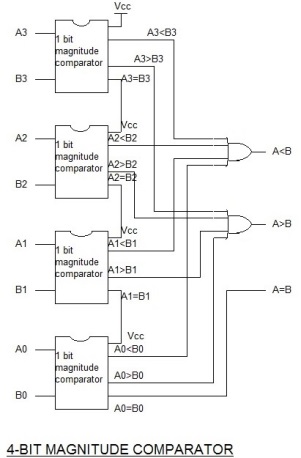

In this circuit for four bit magnitude comparator using four single bit magnitude comparators, first the MSBs of both the inputs(A3 & B3) are compared by first IC.A3=B3 output of this IC is connected to Vcc of 2nd IC. Hence, IC for 2nd bit will be ON only when MSBs are not equal .Other ICs are connected in the similar manner. A(i)B(i) (0
